Control Cable

  1. Move the shift lever to position "N".
  2. Release the adjusting nut at the connection between the transaxle control cable and the manual control lever. Separate the transaxle control cable and the manual control lever. See Fig 1 .
  3. Move the manual control lever to position "N".
  4. Insert a 0.197" (5 mm) pin into the transaxle range switch and the manual control lever hole. See Fig 2 .
    CAUTION: If the pin is not inserted, position "N" may move when tightening the adjusting nut.

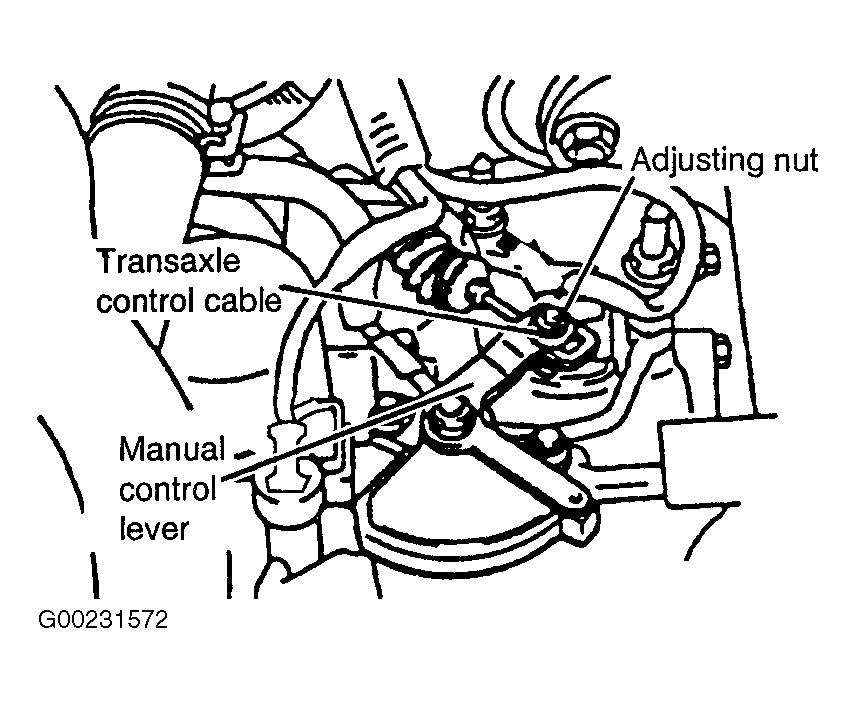

Fig 1: Separating Manual Control Lever & Transaxle Range Switch
G00231571Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Identifying Range Switch Adjustment Components
G00231572Courtesy of KIA MOTORS AMERICA, INC.
