Refrigerant Recovery

WARNING: This page is about a different car, the 2005 Kia Spectra5, 2005 Kia Spectra, and 2004 Kia Spectra. However, it is still accessible from the selected car via links, so may be relevant.

Use only service equipment that is U.L-listed and is certified to meet the requirements of SAE J2210 to remove HFC-134a (R-134a) from the air conditioning system.

CAUTION:

Air conditioning refrigerant or lubricant vapor can irritate your eyes, nose, or throat.
Be careful when connecting service equipment.
Do not breathe refrigerant or vapor.

If accidental system discharge occurs, ventilate work area before resuming service. Additional health and safety information may be obtained from the refrigerant and lubricant manufacturers.

Connect a R-134a refrigerant Recovery/Recycling/Charging System to the high-pressure service port (B & D) and the low-pressure service port (A & C) as shown in illustration. Follow the equipment manufacturer's instructions.
Measure the amount of refrigerant oil removed from the A/C system after the recovery process is completed. Be sure to install the same amount of new refrigerant oil back into the A/C system before charging.

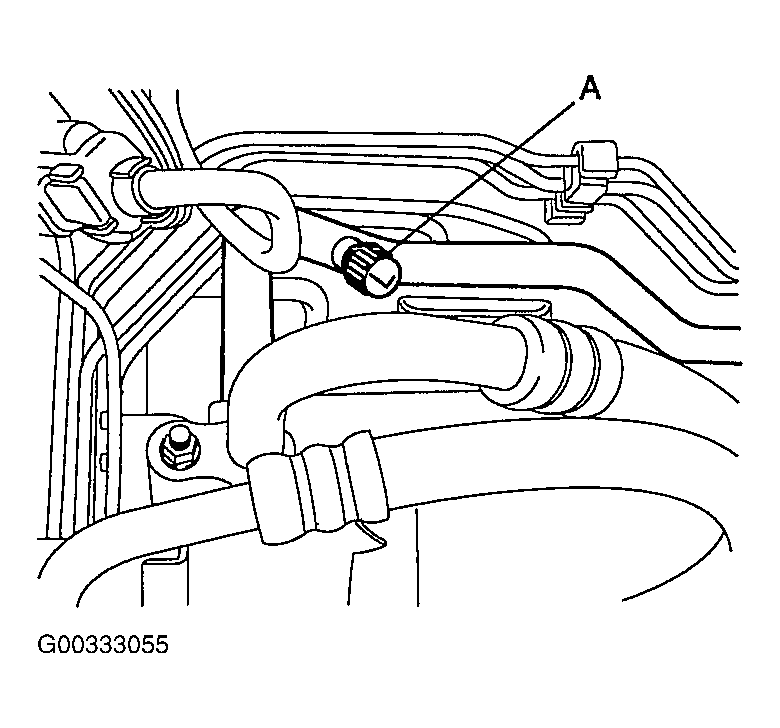

Fig 1: Connecting A/C Recovery/Recycling/Charging Equipment (1 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

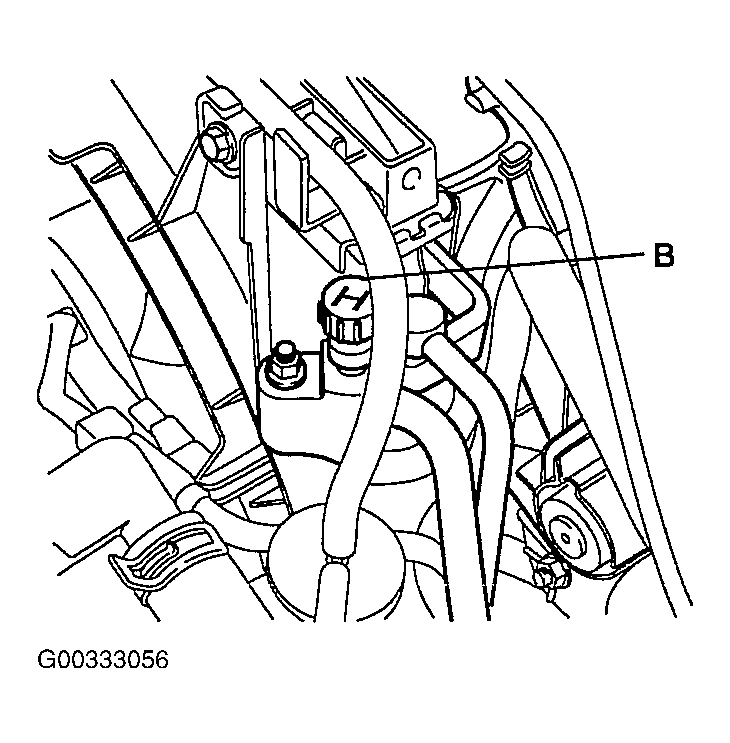

Fig 2: Connecting A/C Recovery/Recycling/Charging Equipment (2 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Connecting A/C Recovery/Recycling/Charging Equipment (3 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.
