Mode Control Actuator: Removal

WARNING: This page is about a different car, the 2005 Kia Spectra5, 2005 Kia Spectra, and 2004 Kia Spectra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the lower crush panel and the side cover.
  3. Disconnect the connector of mode actuator after removing the air duct.
  4. Loosen the mounting screw and then remove the mode actuator.

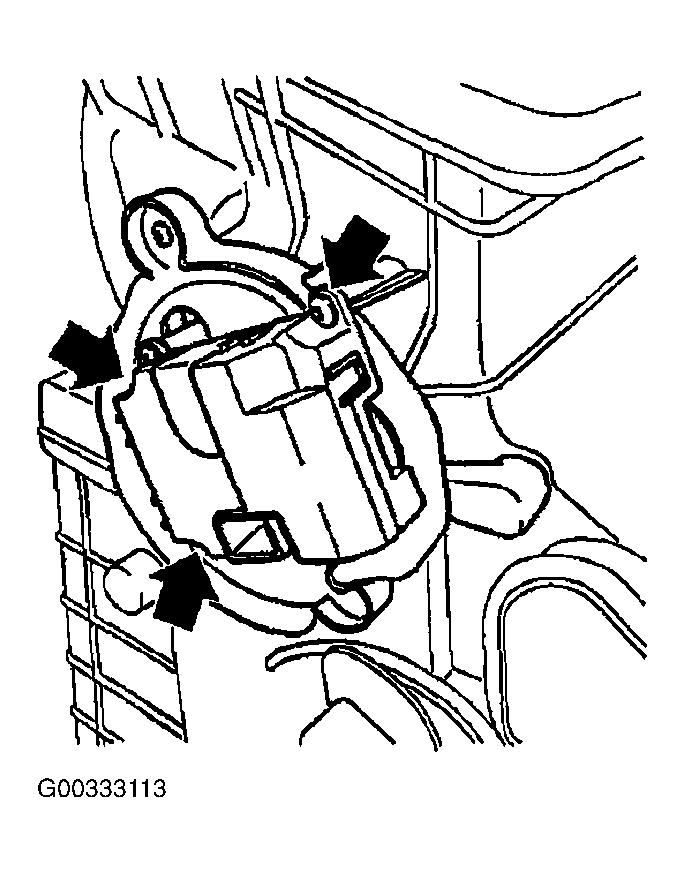

    Fig 1: Removing & Installing Mode Actuator
    G00333113Courtesy of KIA MOTORS AMERICA, INC.
