Power Steering Gear Box: Component

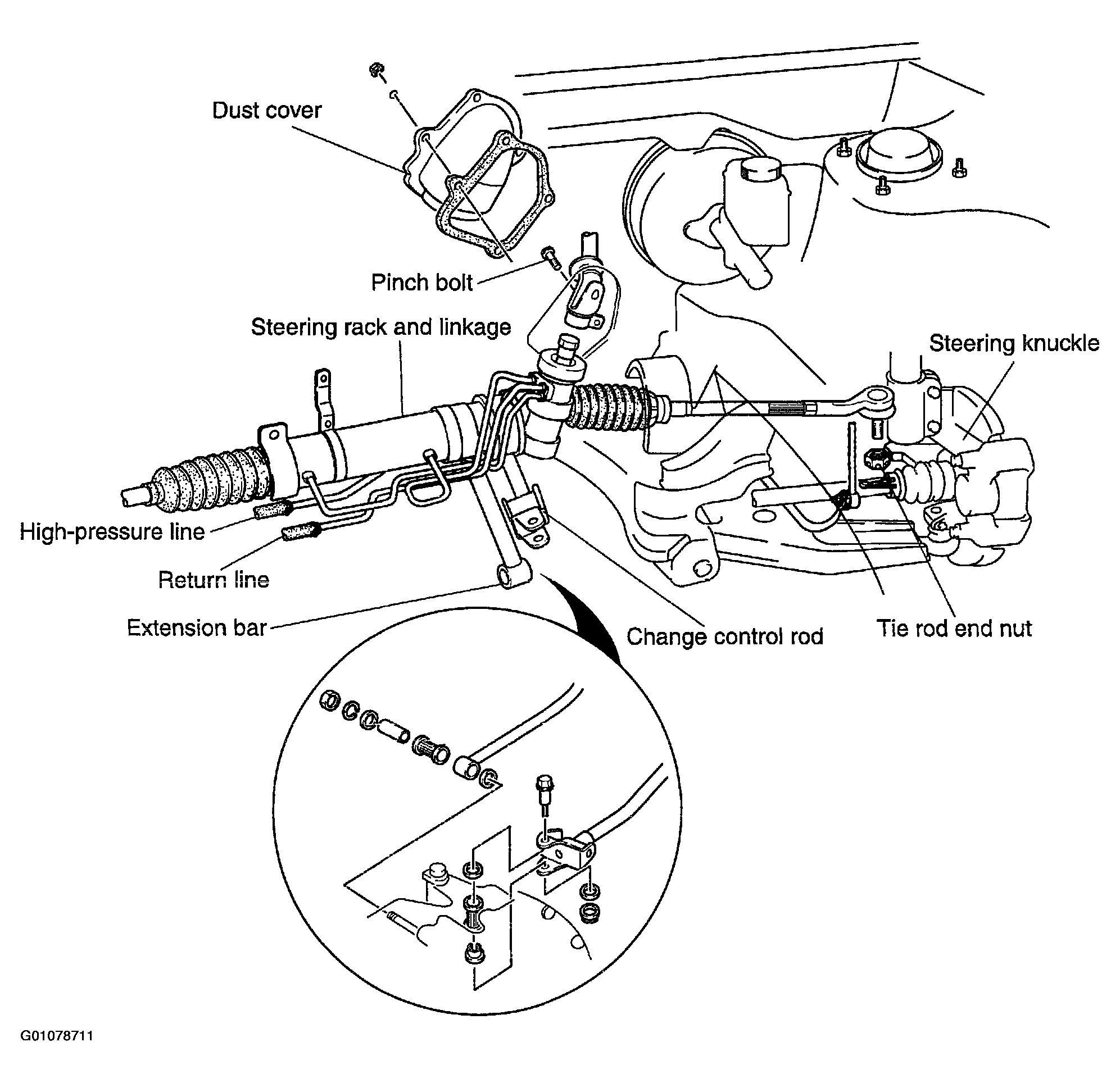

Fig 1: Illustrating Power Steering Gear Box Components
G01078711Courtesy of KIA MOTORS AMERICA, INC.
