Roll Pin

Install new roll pin as shown in figure to hold pinion shaft.

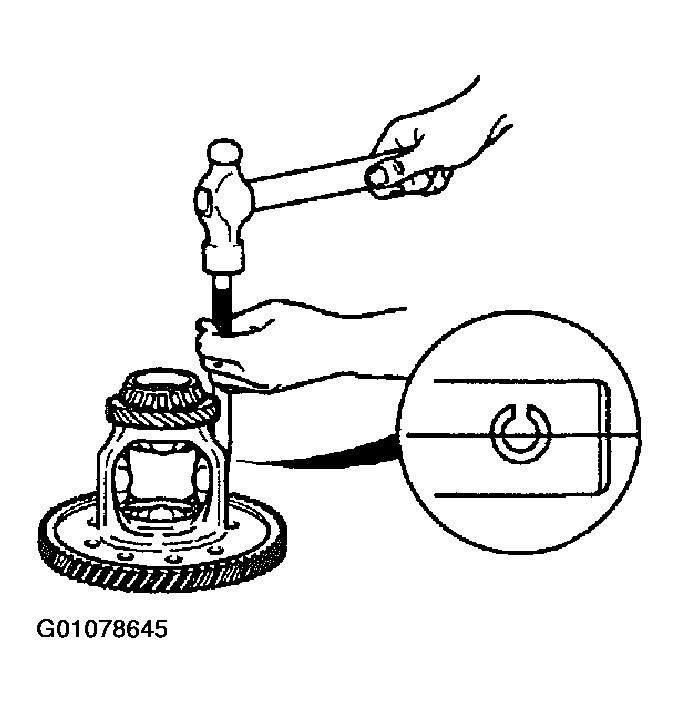

Fig 1: Installing New Roll Pin
Courtesy of KIA MOTORS AMERICA, INC.
