Clutch Hub

Synchronizer key dimensions in (mm)

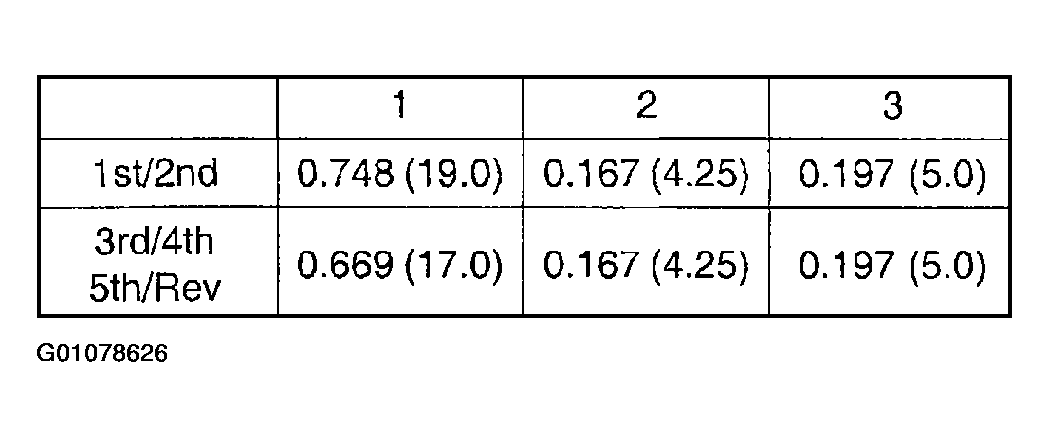

Fig 1: Synchronizer Key Dimensions Chart

Courtesy of KIA MOTORS AMERICA, INC.

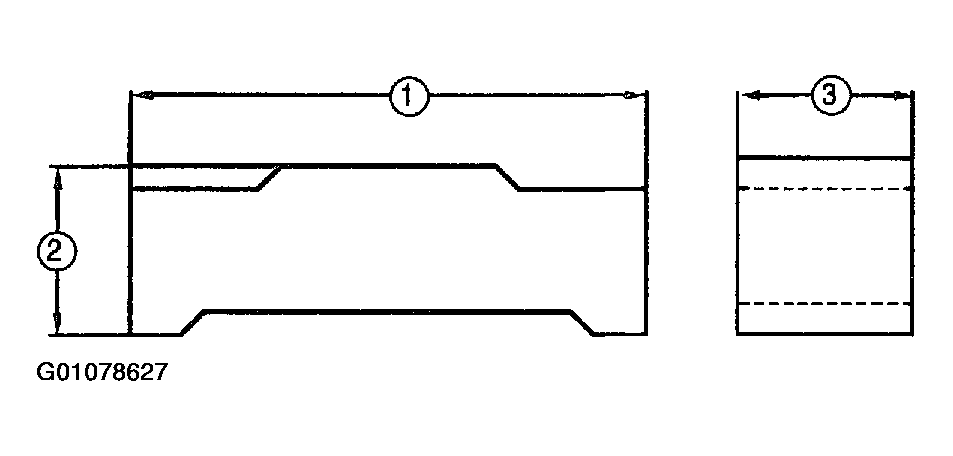

Fig 2: Illustrating Synchronizer Key Dimensions

Courtesy of KIA MOTORS AMERICA, INC.

• Install synchronizer keys and springs in clutch hub.

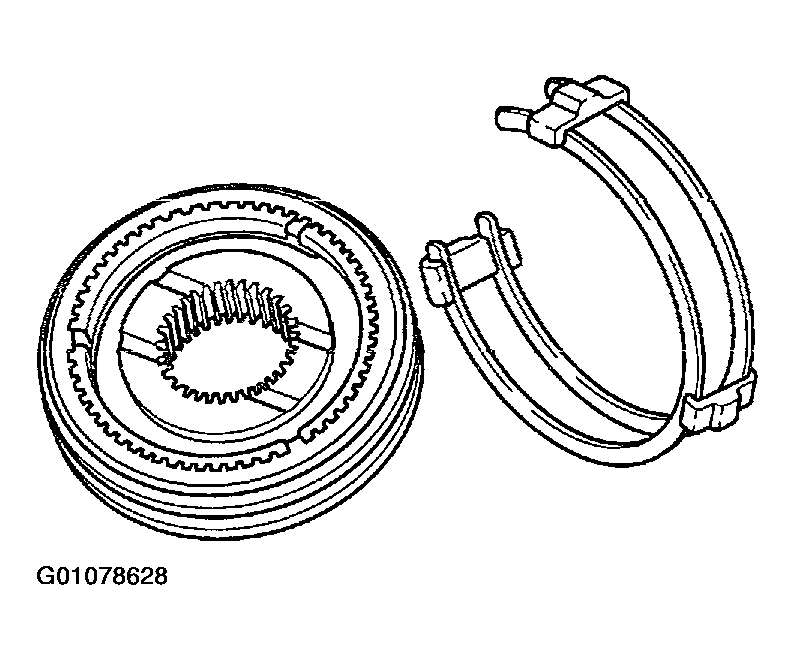

  Fig 3: Installing Synchronizer Keys And Springs In Clutch Hub

  Courtesy of KIA MOTORS AMERICA, INC.
