Assembly Note: Spring

Make sure that the hooked part of the spring is properly seated in the bracket groove, as shown in the figure.

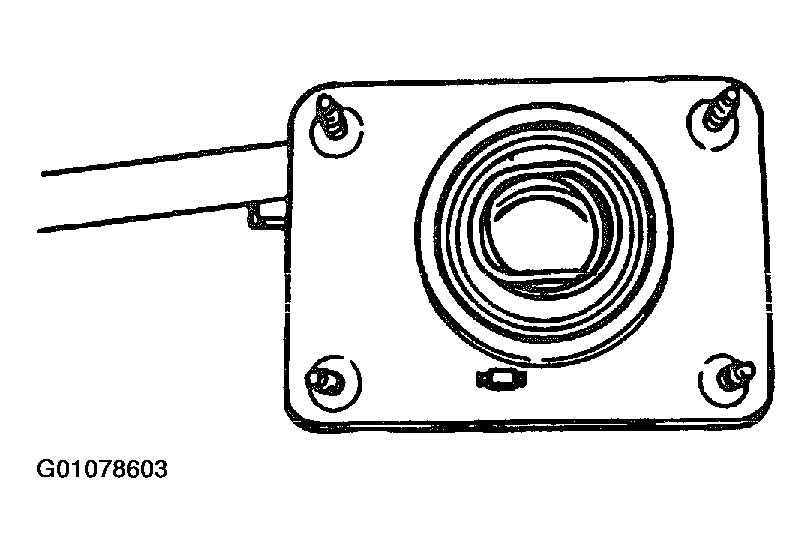

Fig 1: Checking That The Spring Is Properly Seated In The Bracket Groove

Courtesy of KIA MOTORS AMERICA, INC.
