Boot (Change Rod Assembly)

Install boot so that drain hole is facing downward when mounted on vehicle.

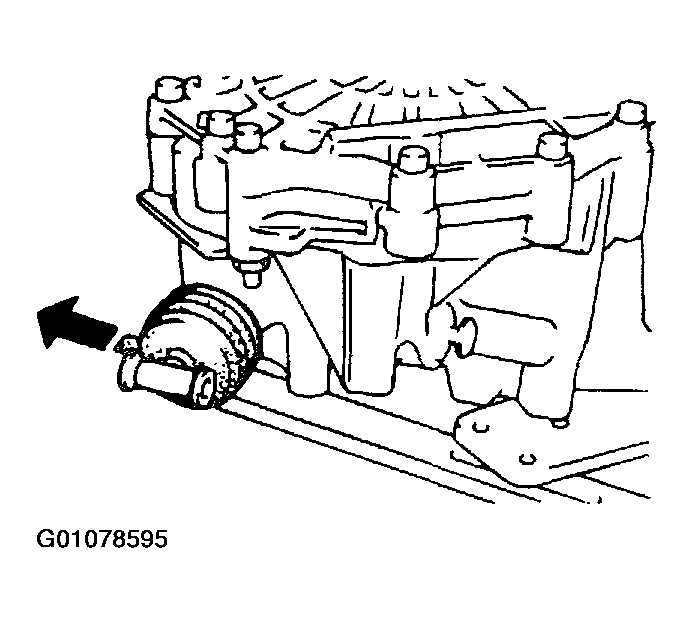

Fig 1: Installing Change Rod Boot
G01078595Courtesy of KIA MOTORS AMERICA, INC.
