Removal & Installation: Component

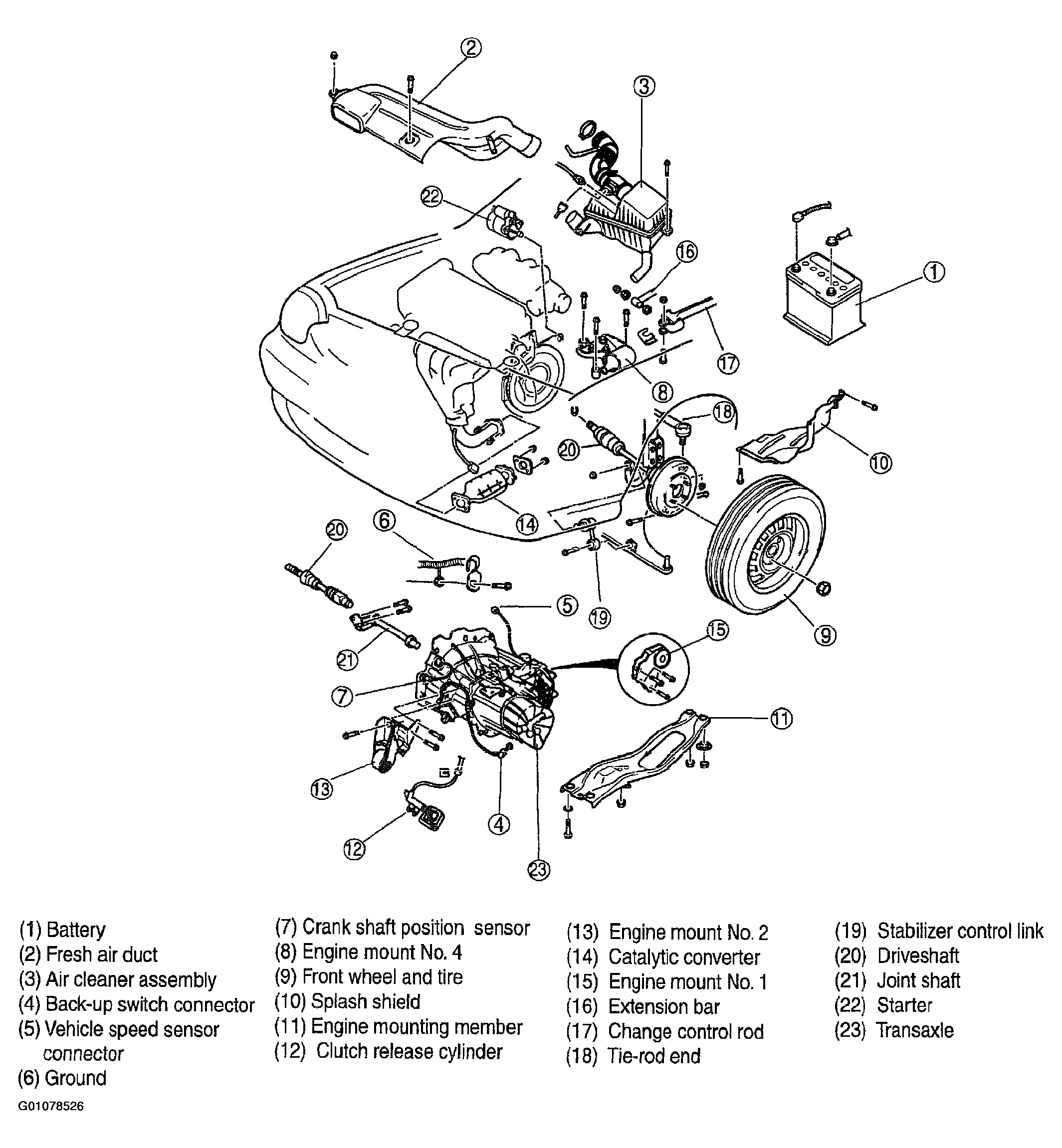

Fig 1: Illustrating Transaxle Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
