Abs Control Flow

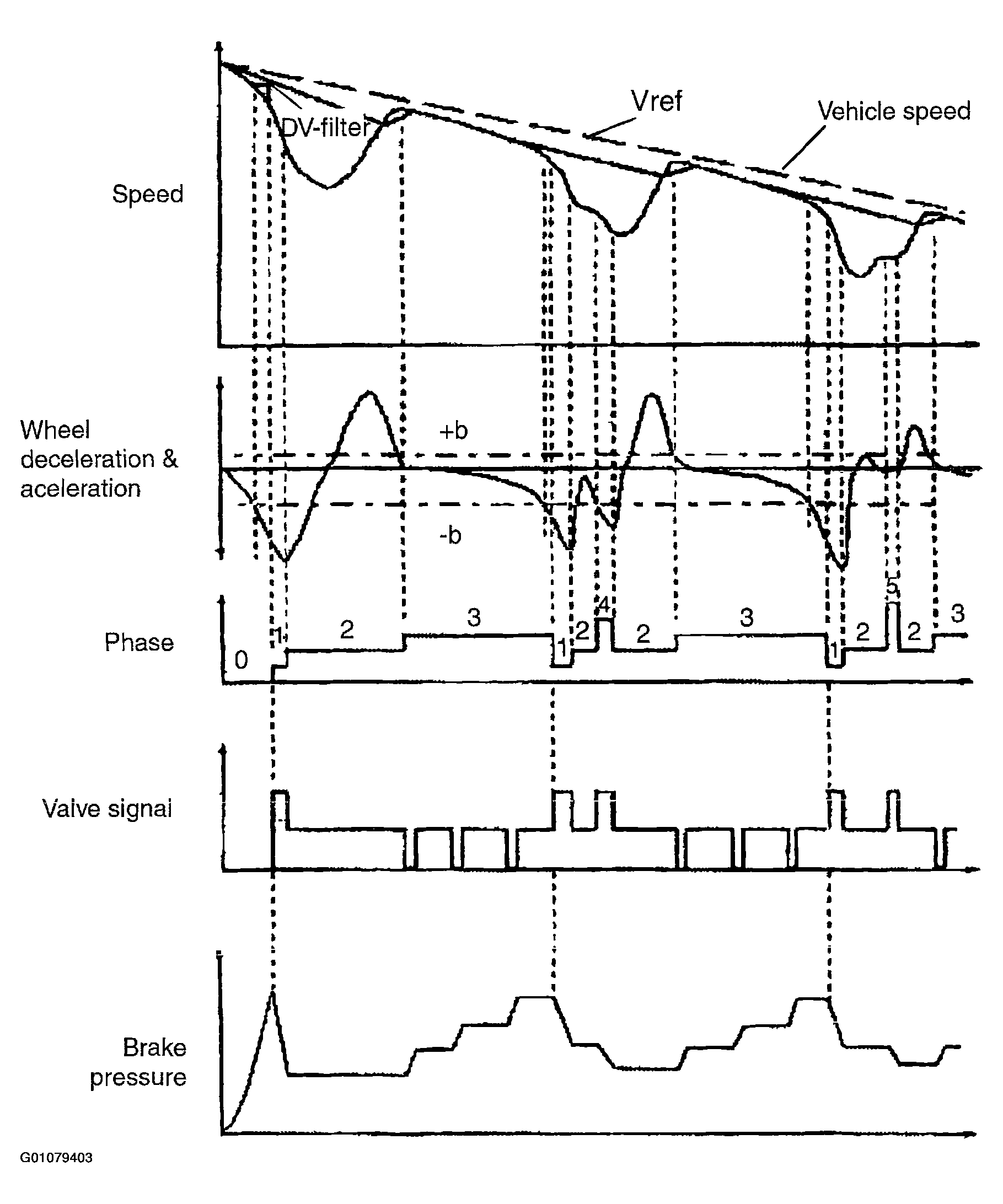

Fig 1: ABS Control Flow Graph
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
