Manual Transmission/Transaxle
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Manual Transmission/Transaxle

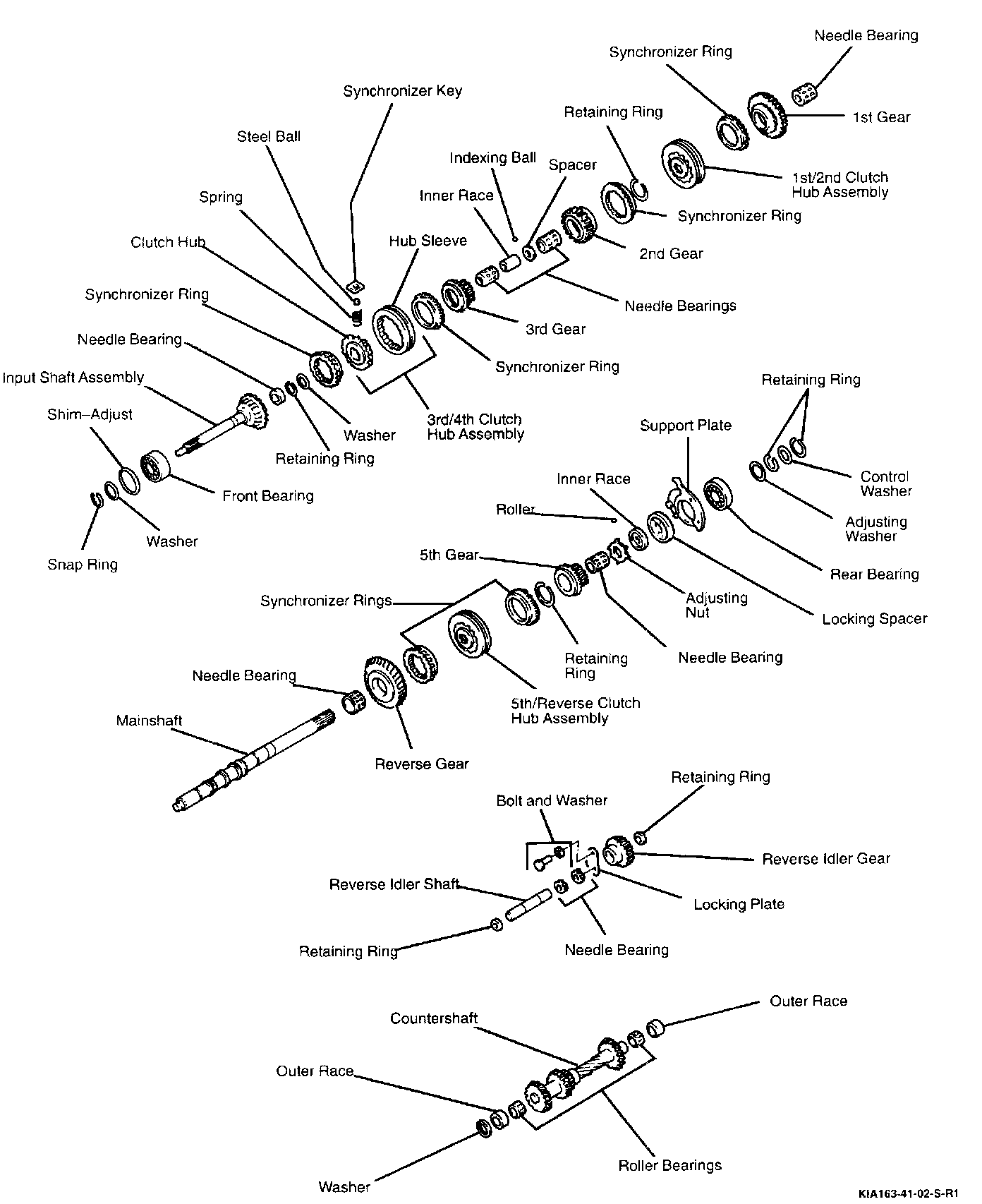

Input Shaft, Mainshaft, Countershaft and Reverse Idler Shaft Assembly:
