Home >> Kia >> 2002 >> Sportage EX 4WD L4-2.0L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Axle Shaft Assembly
April 5, 2026: LEMON Manuals is launched! Read the announcement.

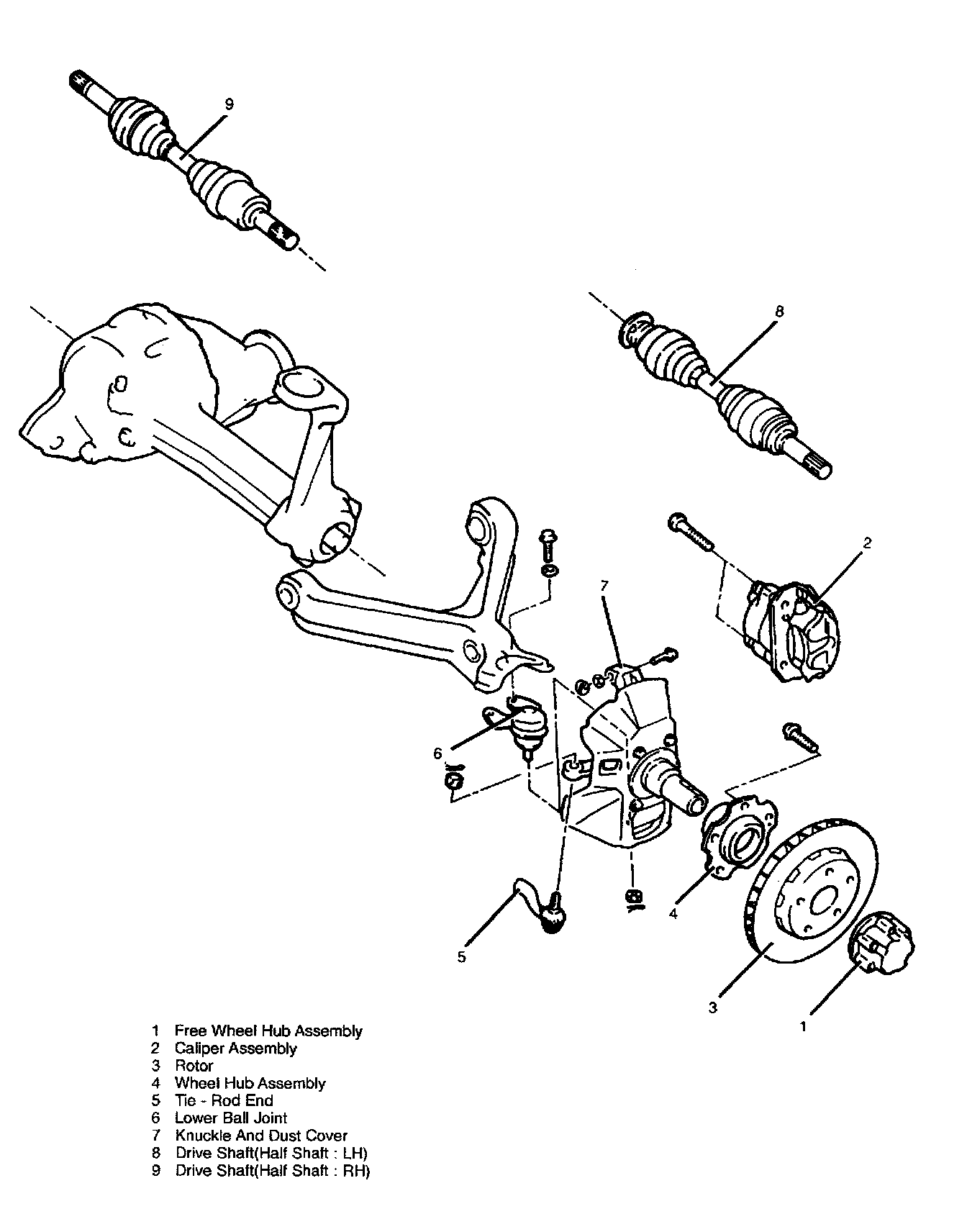

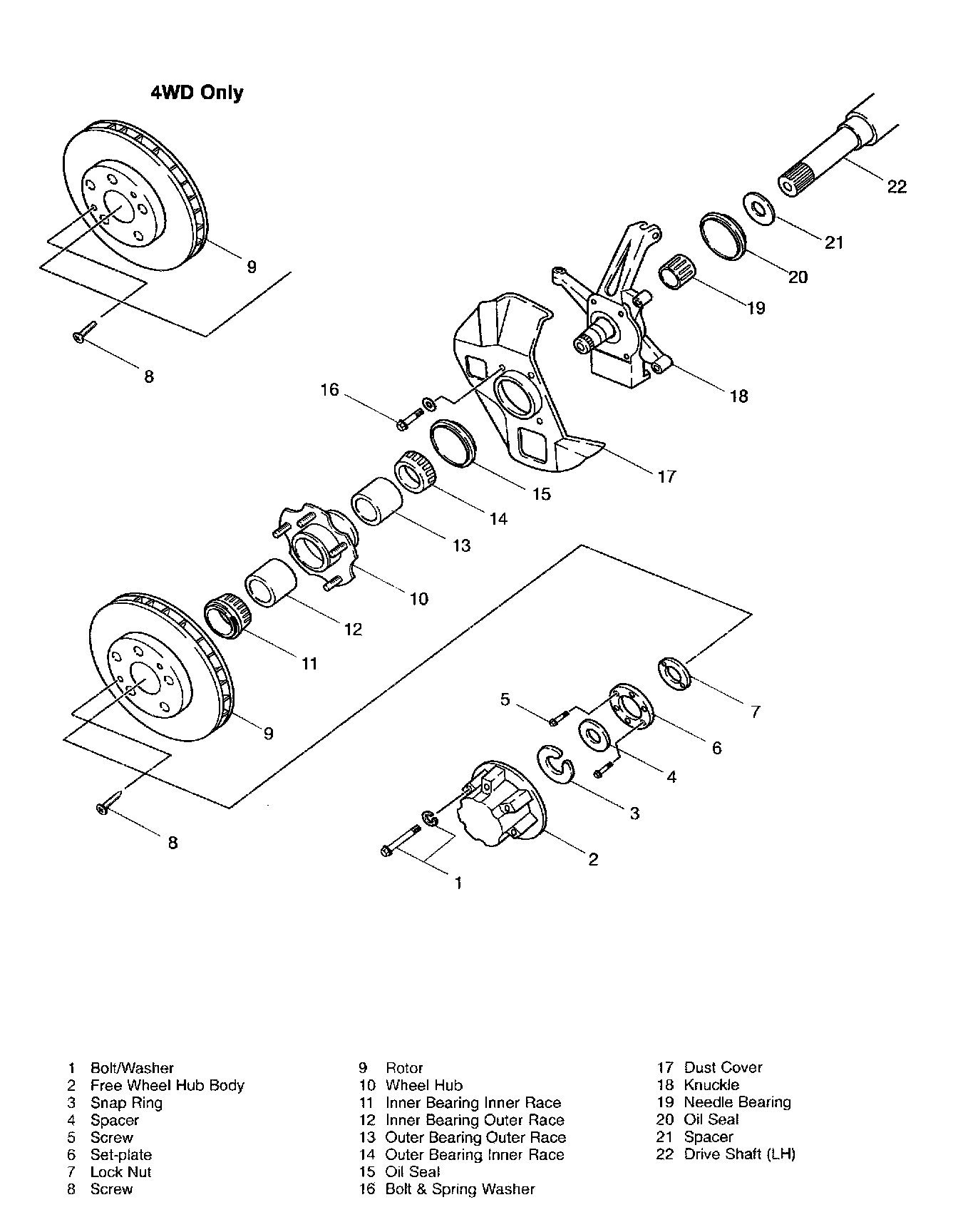

Axle Shaft Assembly





1 of 2





2 of 2
