Engine And Transaxle Assembly: Components

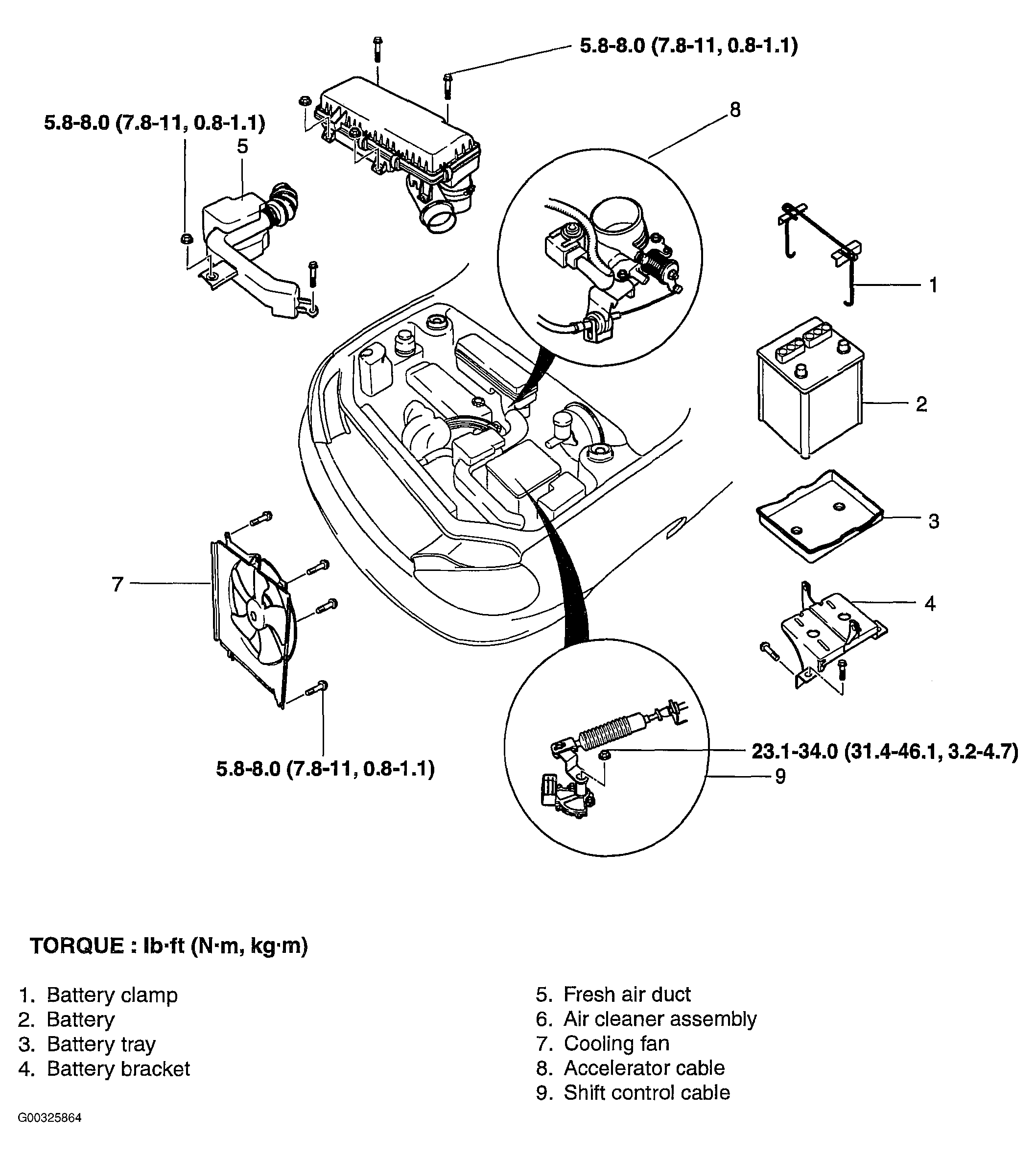

Fig 1: Identifying Engine & Transaxle Assembly Components (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

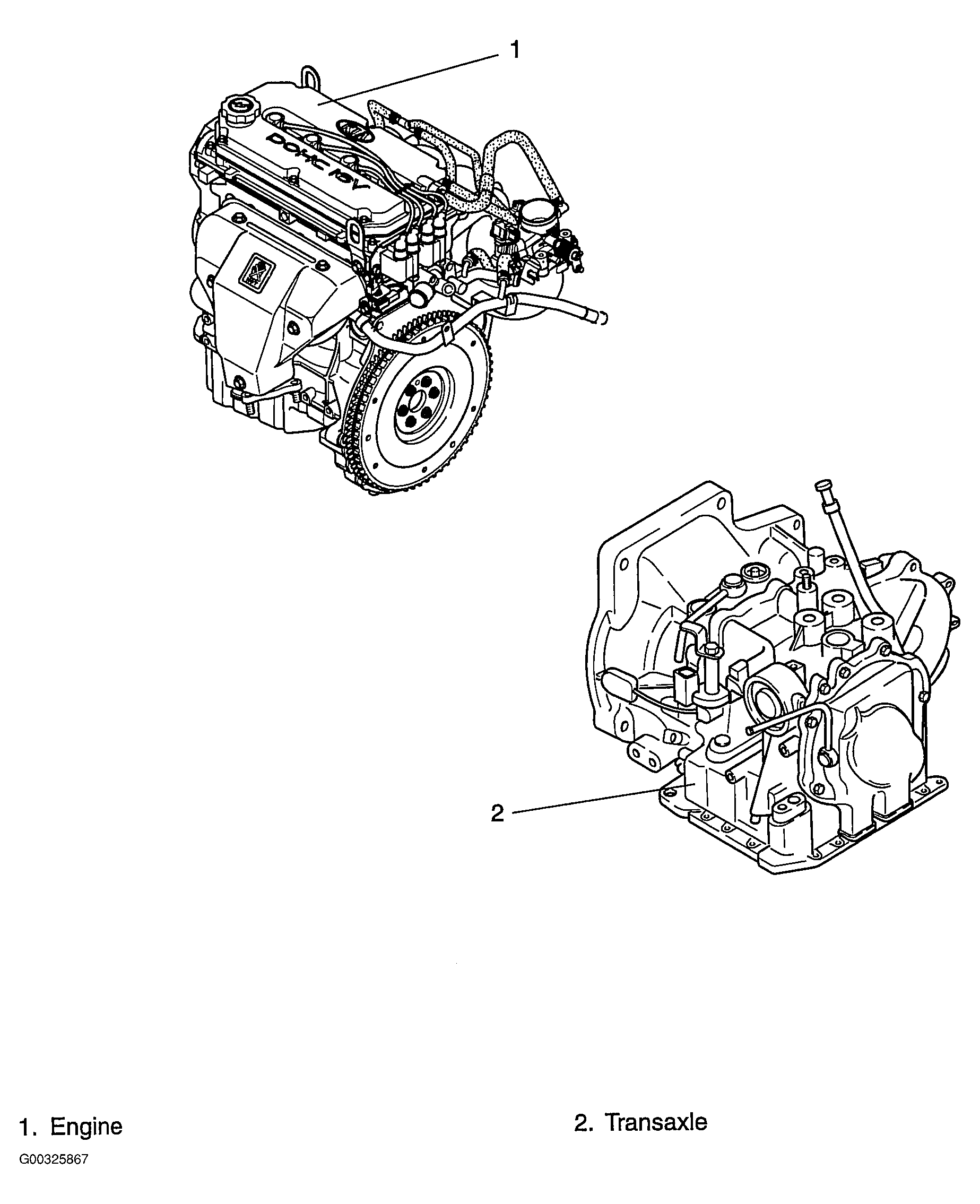

Fig 2: Identifying Engine & Transaxle Assembly Components (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

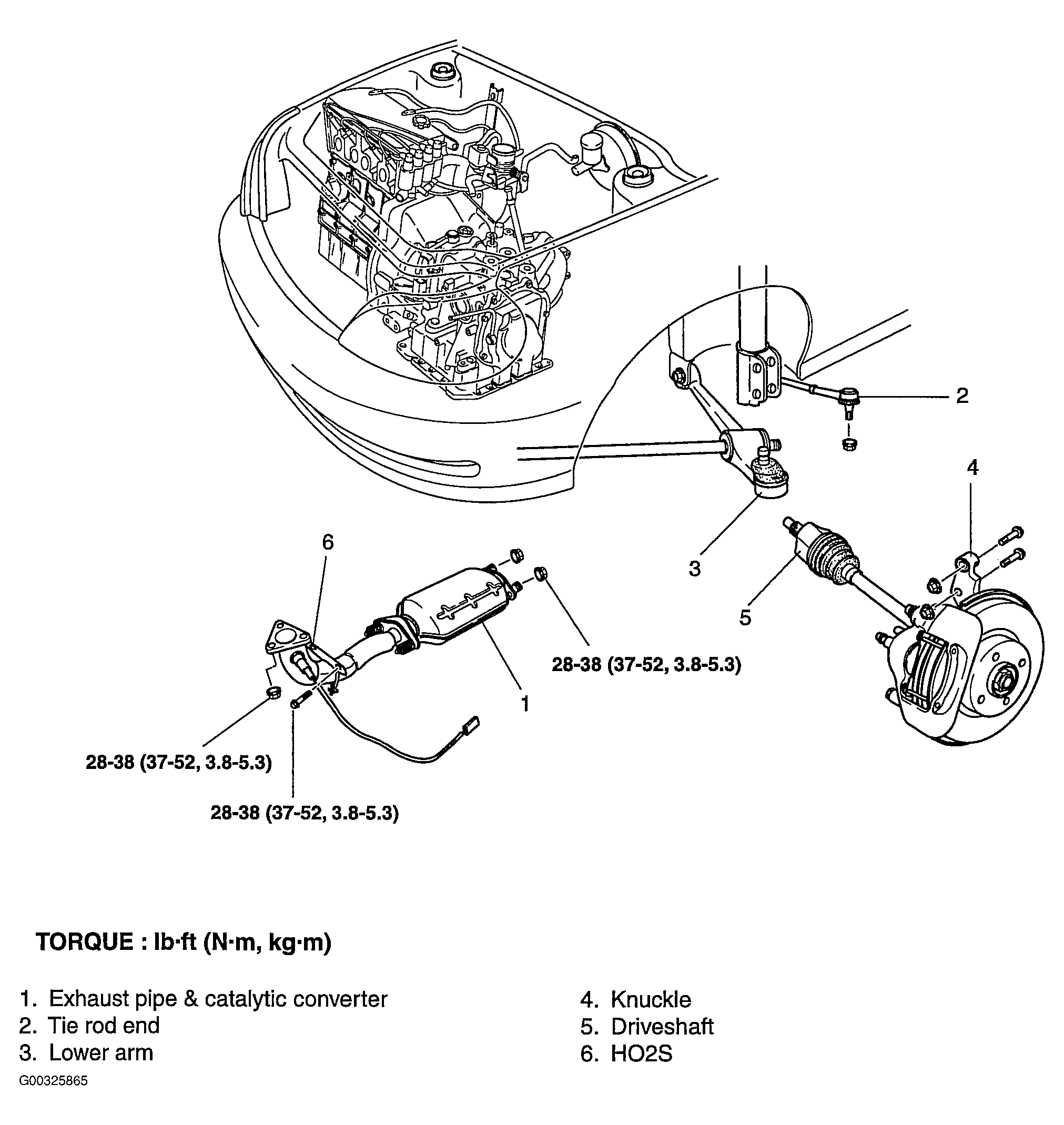

Fig 3: Identifying Engine & Transaxle Assembly Components (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 4: Identifying Engine & Transaxle Assembly Components (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
