ETACS (Electronic Time And A Alarm Control System)
>>
Electronic Time And Alarm Control Module
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

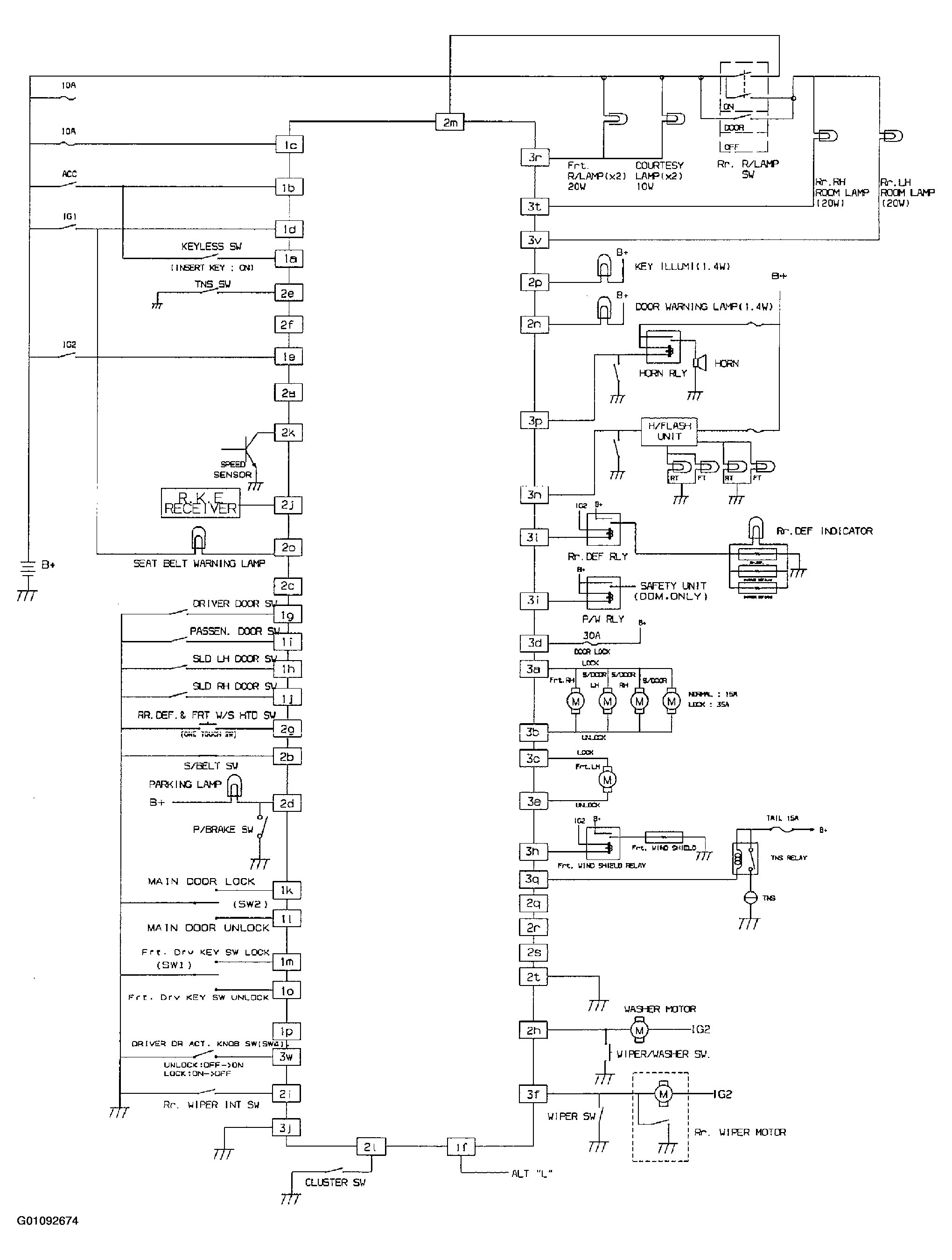

Fig 1: Electronic Time And Alarm Control Module Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
