ETACS Function

Rear intermittent wiper time specification.
- T: 5 +/- 1 sec.
- T1: 0.5 +/- 0.25 sec.
Fig 1: Rear Intermittent Wiper Functional Time Chart
Courtesy of KIA MOTORS AMERICA, INC.
Rear washer related wiper. Time specification: T: 0.5 +/- 0.25

Fig 2: Rear Wiper Functional Time Chart
Courtesy of KIA MOTORS AMERICA, INC.
Rear window defogger and front windshield defogger. Time specification: T1: 15 +/- 3 min.

Fig 3: Rear And Front Windshield Defogger Functional Time Chart
Courtesy of KIA MOTORS AMERICA, INC.
Seat belt warning time specification:
- T1: 6 +/- 1.5 sec.
- T2: 0.5 +/- 0.1 sec.
Fig 4: Seat Belt Warning Functional Time Chart
Courtesy of KIA MOTORS AMERICA, INC.
Ignition key hole illumination. Time specification, T: 30 +/- 10

Fig 5: Ignition Key Hole Illumination Functional Time Chart
Courtesy of KIA MOTORS AMERICA, INC.
Delayed out room lamp. Time specification:
- T1: 4.5 +/- 1.0 sec.
- T2 ; 10 +/- 2.0 sec.
- T3: 20 +/- 2 min.
1. Upon the front door or sliding door open with keyless switch OFF, the room lamp and courtesy lamp turns on for T3.
2. Upon the door switch OFF with ACC is OFF, the room lamp declines 100% to 0% for T1.
3. Upon the door switch OFF with ACC is ON, the room lamp turns on for T1.
4. The room lamp turns on for T1 when the door unlock signal is ON by RKE.
Fig 6: Delayed Out Room Lamp Functional Time Chart
Courtesy of KIA MOTORS AMERICA, INC.
Ignition key reminder

Fig 7: Ignition Key Reminder Functional Time Chart
Courtesy of KIA MOTORS AMERICA, INC.
Battery saver.

Fig 8: Battery Saver Functional Time Chart
Courtesy of KIA MOTORS AMERICA, INC.
Power window time specification: T1: 30 +/- 6 sec.

Fig 9: Power Window Timer Functional Time Chart
Courtesy of KIA MOTORS AMERICA, INC.
Sliding door lock time specification: T1: 0.5 +/- 0.1 sec.

Fig 10: Sliding Door Lock Functional Time Chart
Courtesy of KIA MOTORS AMERICA, INC.
2-Turn unlock time specification:
- T1: 3+/-0.5 sec.
- T2: 0.5 sec.
Fig 11: 2-Turn Unlock Functional Time Chart
Courtesy of KIA MOTORS AMERICA, INC.

Fig 12: RKE Functional Time Chart
Courtesy of KIA MOTORS AMERICA, INC.
Door ajar

Fig 13: Door Ajar Functional Time Chart
Courtesy of KIA MOTORS AMERICA, INC.
Parking on drive time specification: T1: 0.5+/-0.1 sec.

Fig 14: Parking On Drive Functional Time Chart
Courtesy of KIA MOTORS AMERICA, INC.
Central door lock/unlock.

Fig 15: Central Door Lock/Unlock Functional Chart
Courtesy of KIA MOTORS AMERICA, INC.
Light warning

Fig 16: Light Warning Functional Time Chart
Courtesy of KIA MOTORS AMERICA, INC.
Remove keyless Entry system.
- Door lock

  Fig 17: RKE Door Lock Functional Chart
  Courtesy of KIA MOTORS AMERICA, INC.
- Door unlock

  Fig 18: RKE Door Unlock Functional Time Chart
  Courtesy of KIA MOTORS AMERICA, INC.

  Time specification : T1: 1.0+/-2.0 sec.
- Panic time specification:
  - T1: 27+/-2 sec.
  - T2: 0.5+/-0.1 sec.
  Fig 19: Panic Functional Time Chart
  Courtesy of KIA MOTORS AMERICA, INC.
Code saving method
- Connect the coding connector to the Diagnosis connector in order to jump, between terminal 12 and terminal 16 if you have a coding connector, use a jumper wire between the above-mentioned terminals.
- Turn the ignition switch to "ON" position.
- Press LOCK button of transmitter two times. If success, the buzzer will operate for approximately one second.
- Turn the ignition switch to "OFF" position and remove ignition key from key set.
- Disconnect the coding connector from the diagnosis connect.
- Check for LOCK and UNLOCK operation.

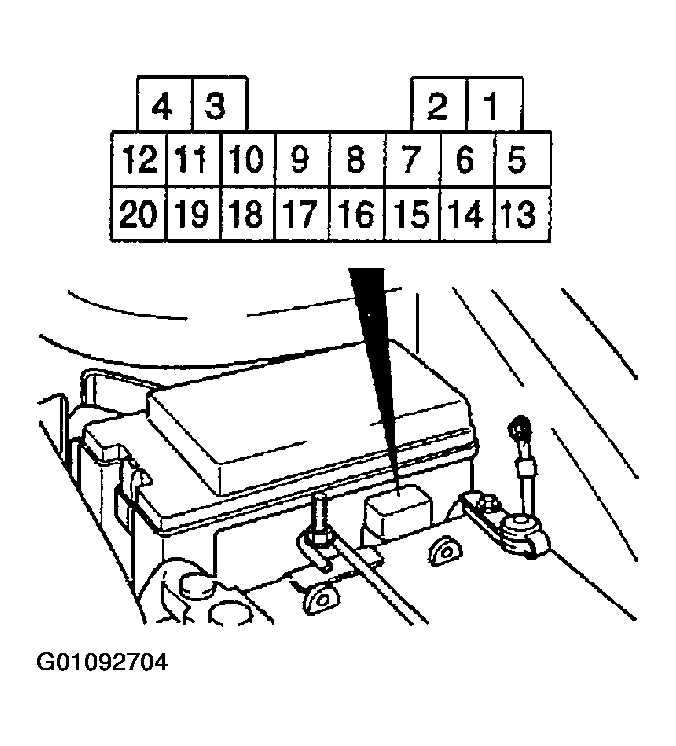

Fig 20: Illustrating Module Connector Location & Pin Identification
Courtesy of KIA MOTORS AMERICA, INC.
