Steering System: General: Specifications

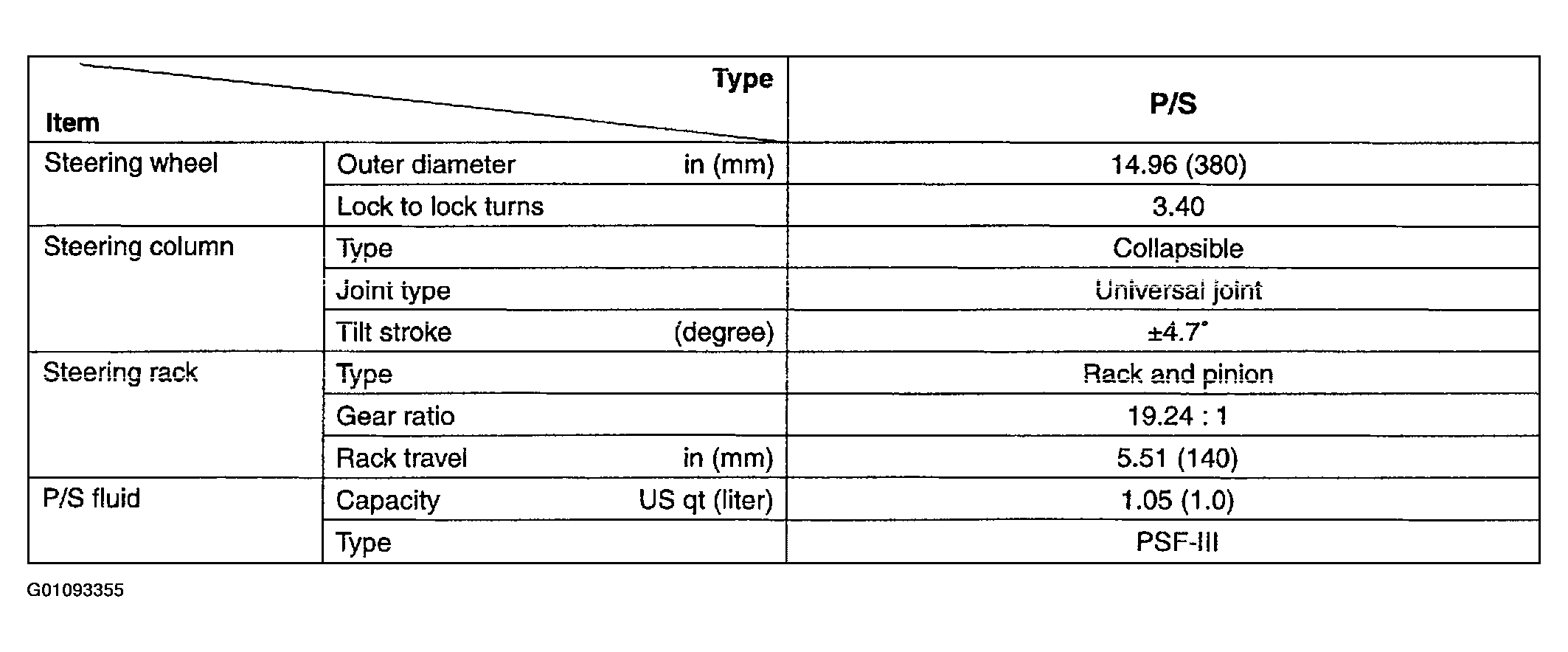

Fig 1: Steering System Specifications

G01093355

Courtesy of KIA MOTORS AMERICA, INC.
