Engine Control Module: Testing and Inspection

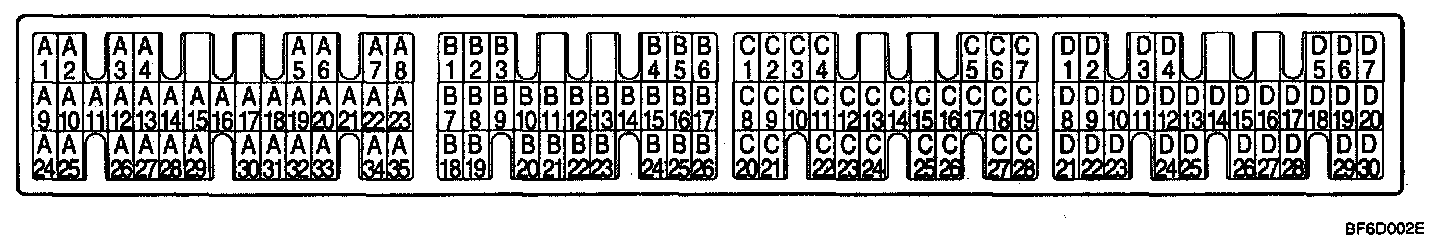

ECM Terminal Layout:

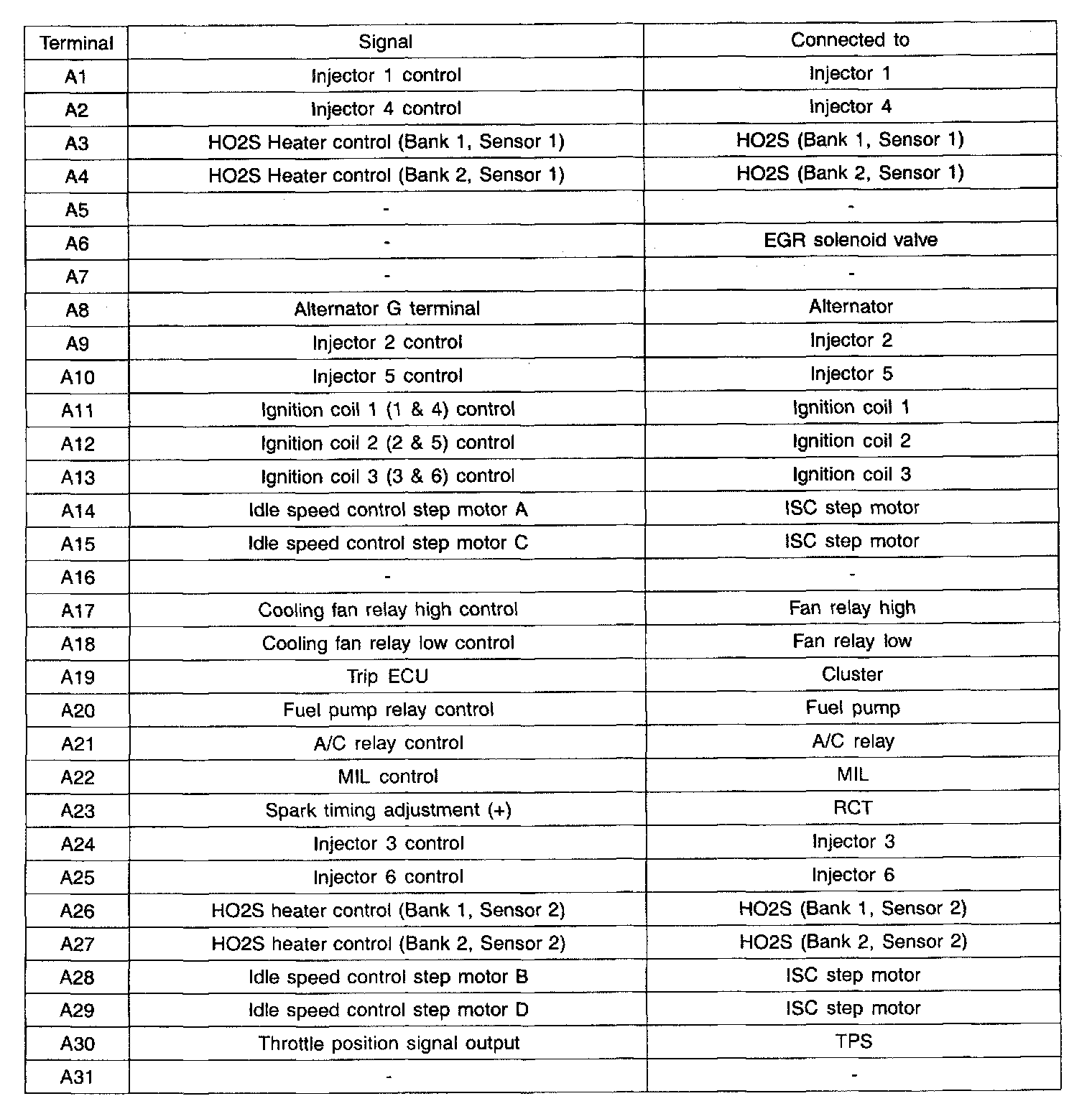

Connector B-01 (A) (A1 - A31):

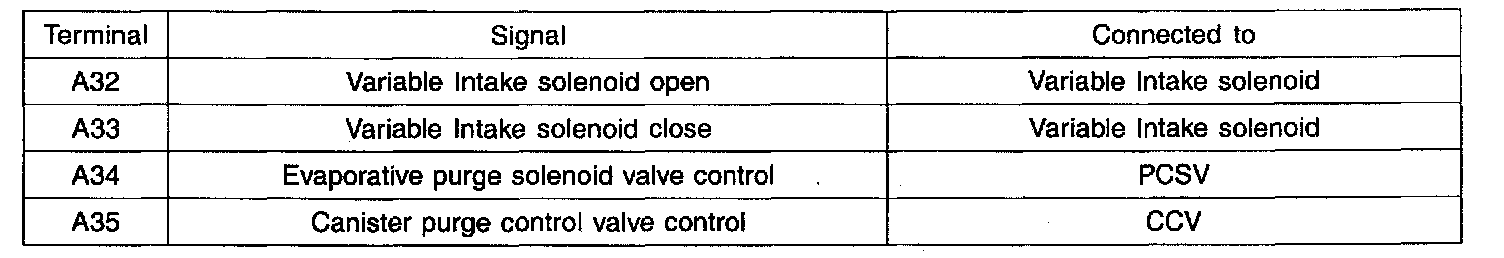

Connector B-01 (A) (A32 - A35):

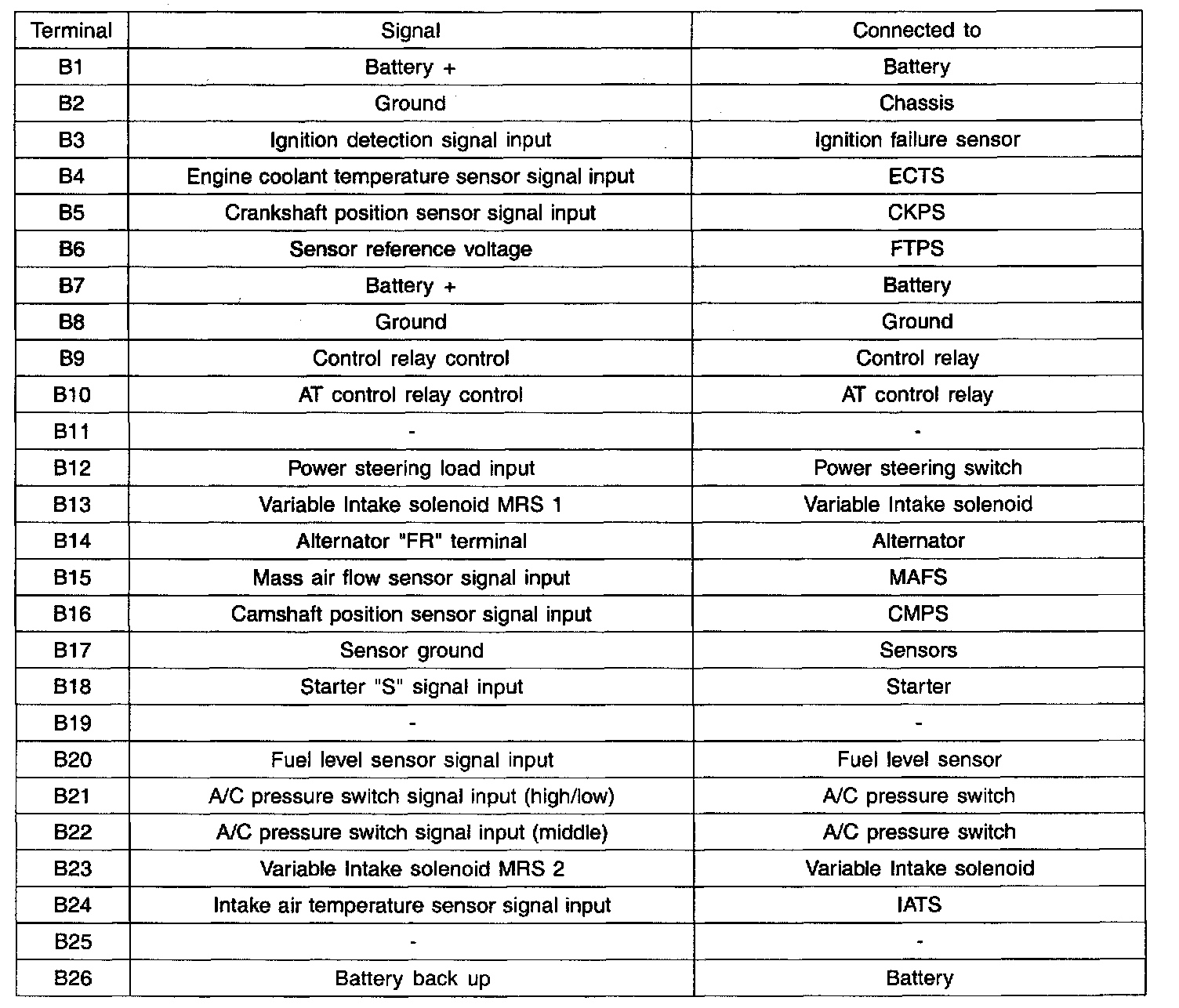

Connector B-01 (B) (B1 - B26):

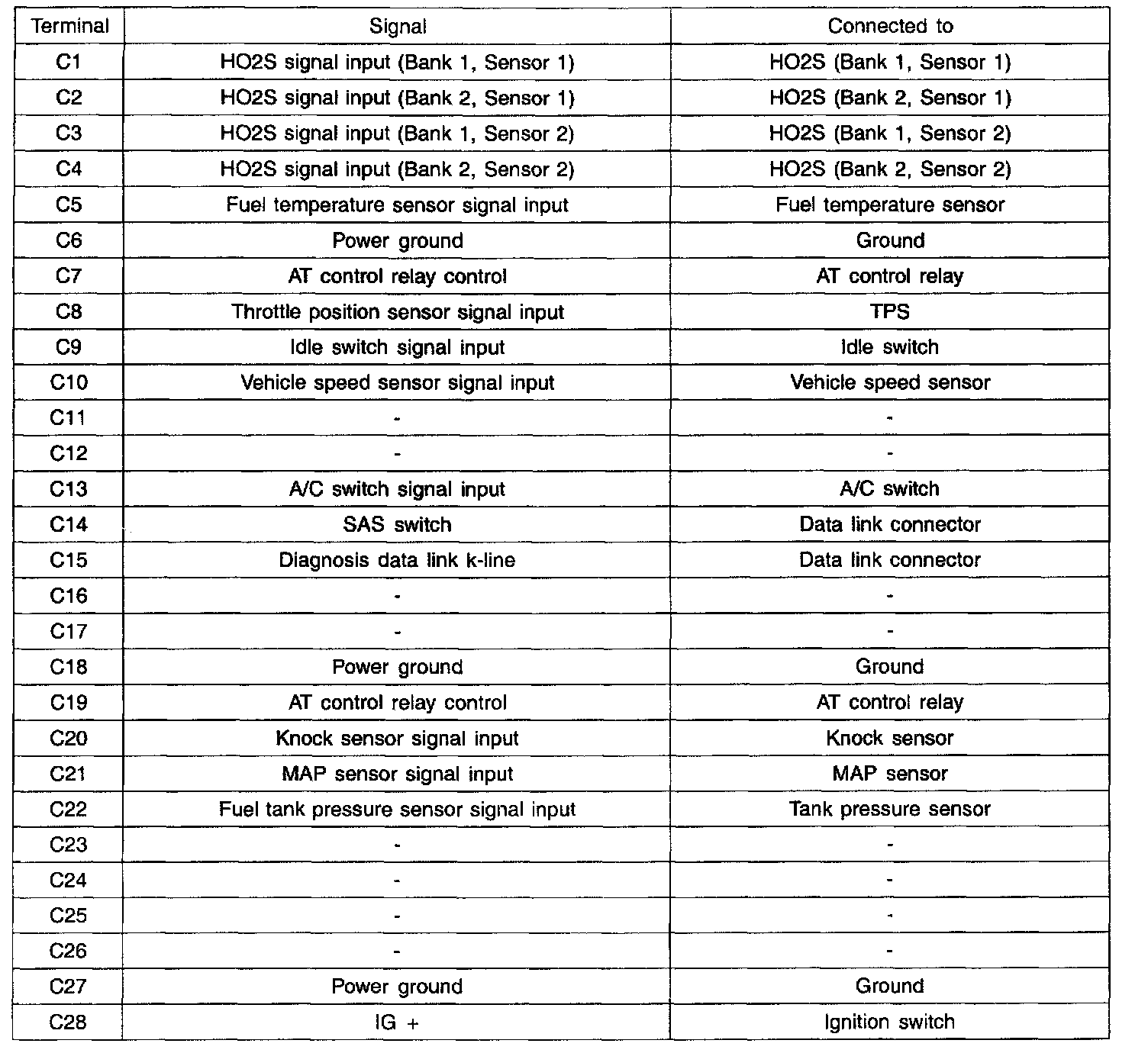

Connector B-01 (C) (C1 - C28):

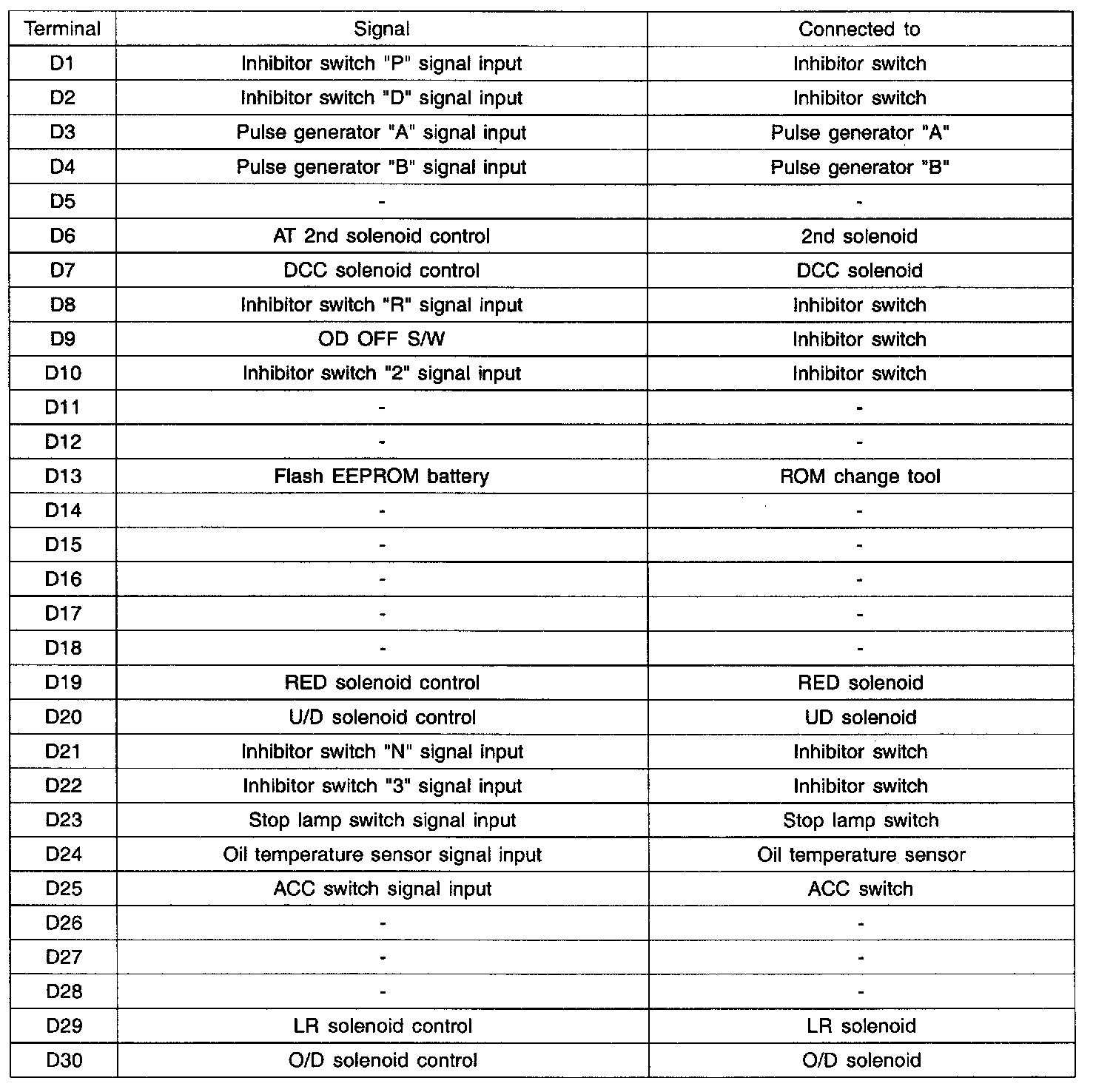

Connector B-01 (D) (D1 - D30):
