ETACS Pin No. And Description

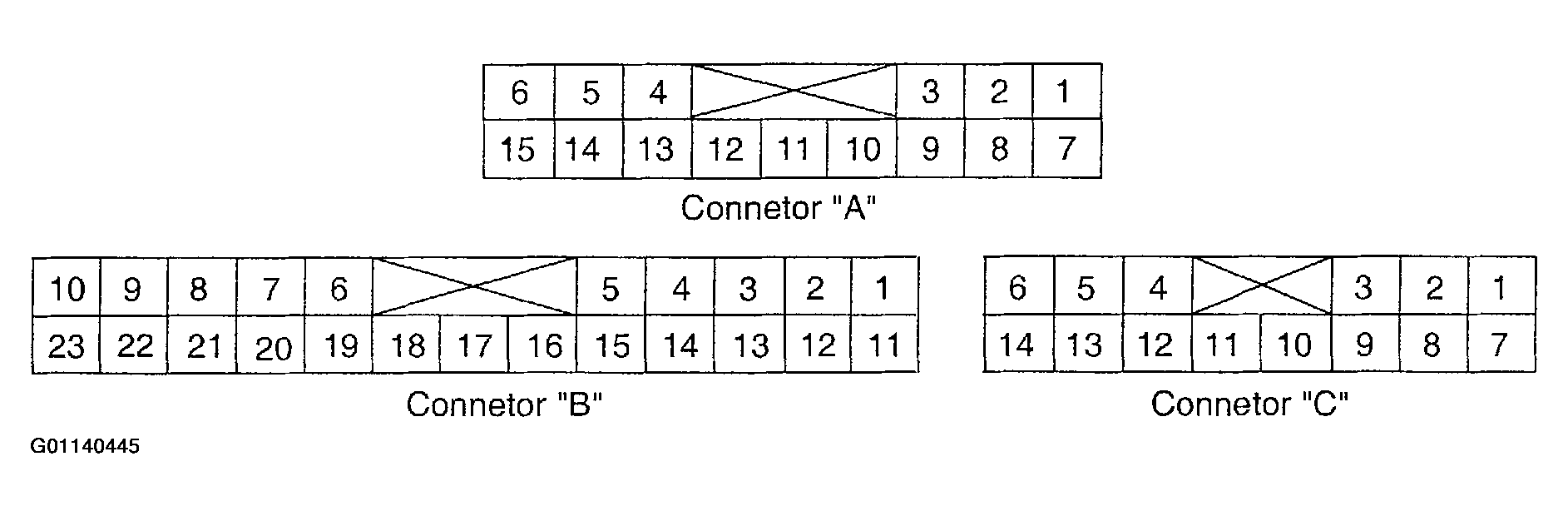

Fig 1: Illustrating ETACS Connector Pinout
G01140445Courtesy of KIA MOTORS AMERICA, INC.

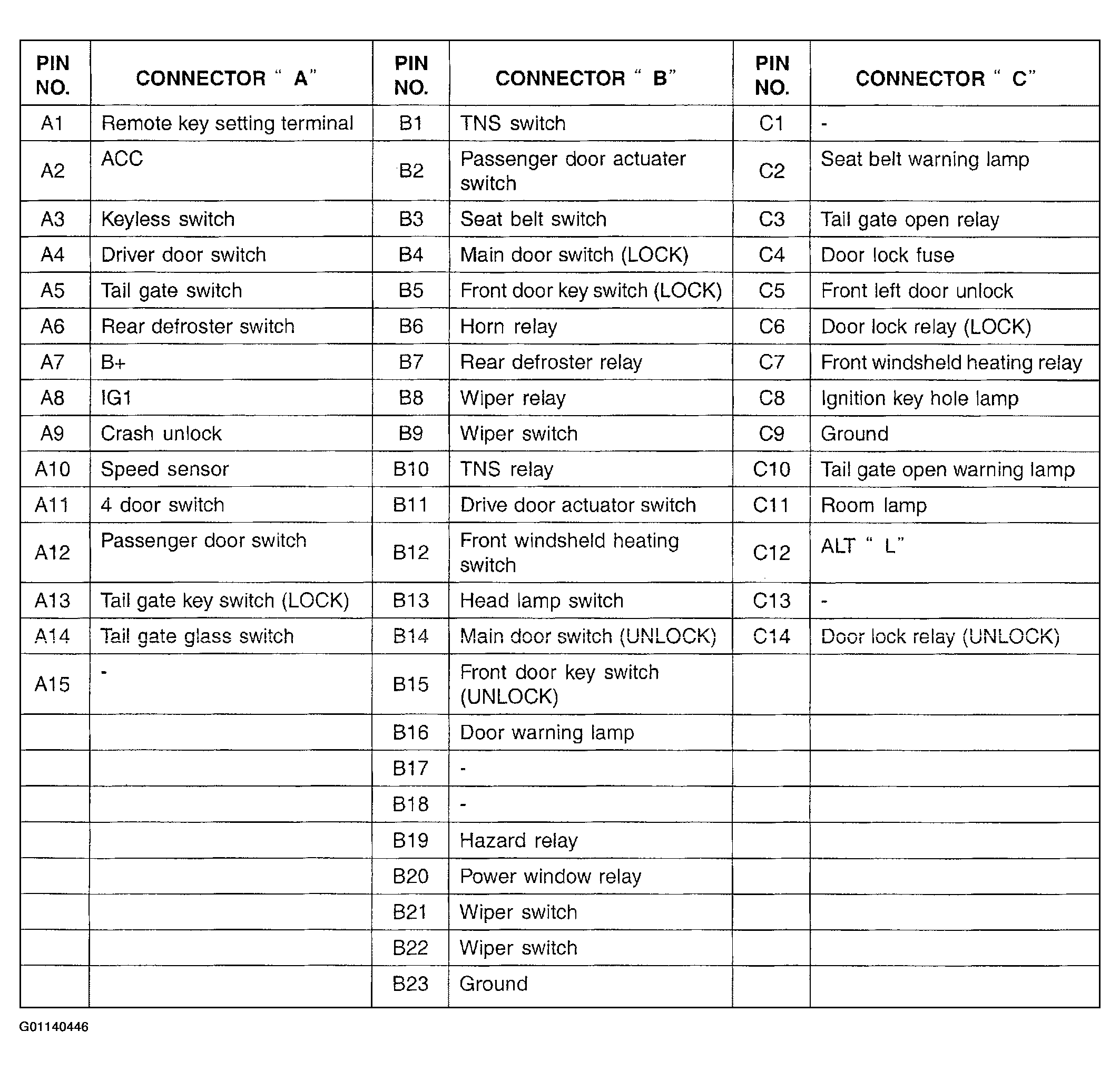

Fig 2: Illustrating Pin No. And Description
G01140446Courtesy of KIA MOTORS AMERICA, INC.
