Charging Systems: Generator: Components: Notes

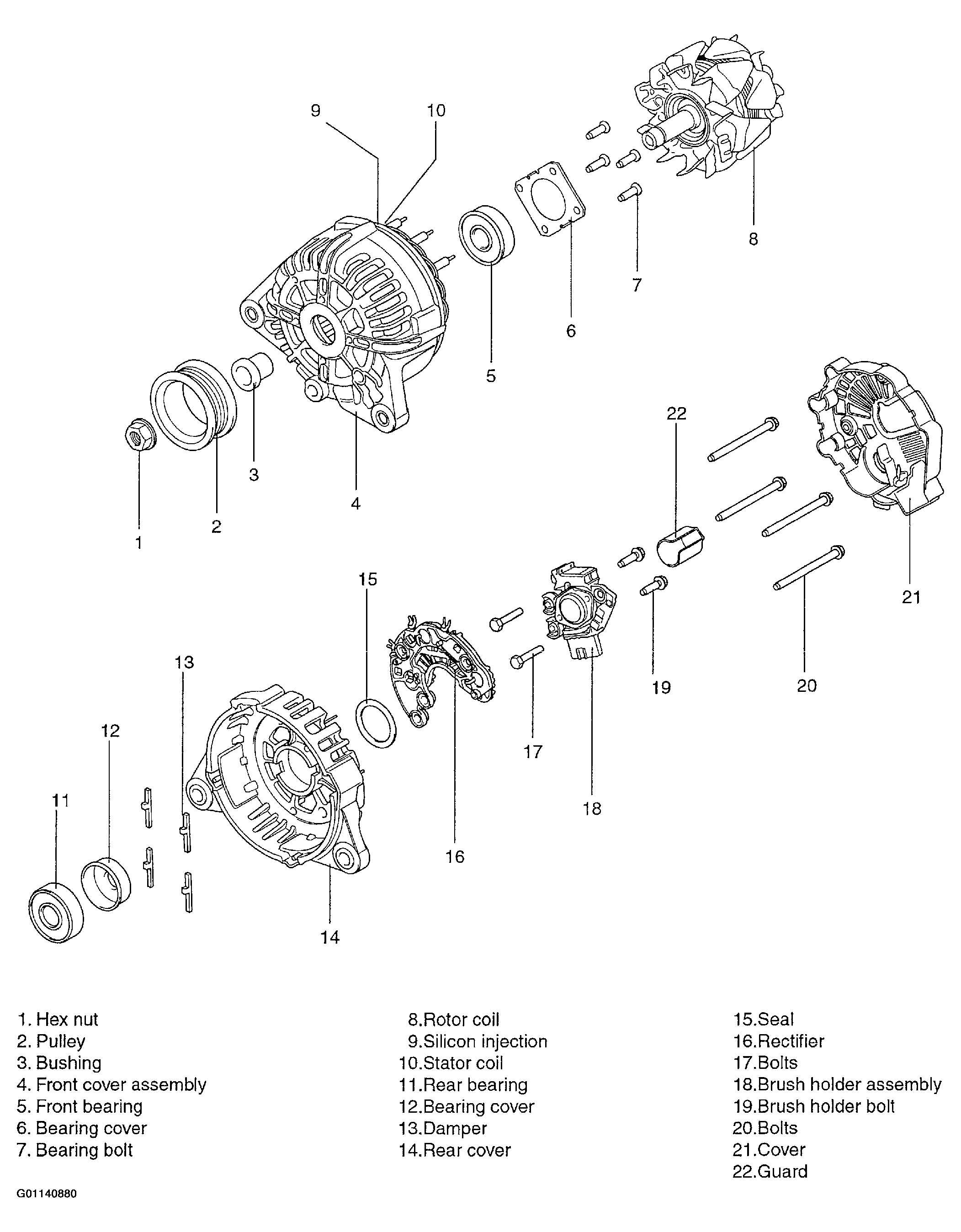

Fig 1: Exploded View Of Generator Components

G01140880

Courtesy of KIA MOTORS AMERICA, INC.
