Cooling System: Specification

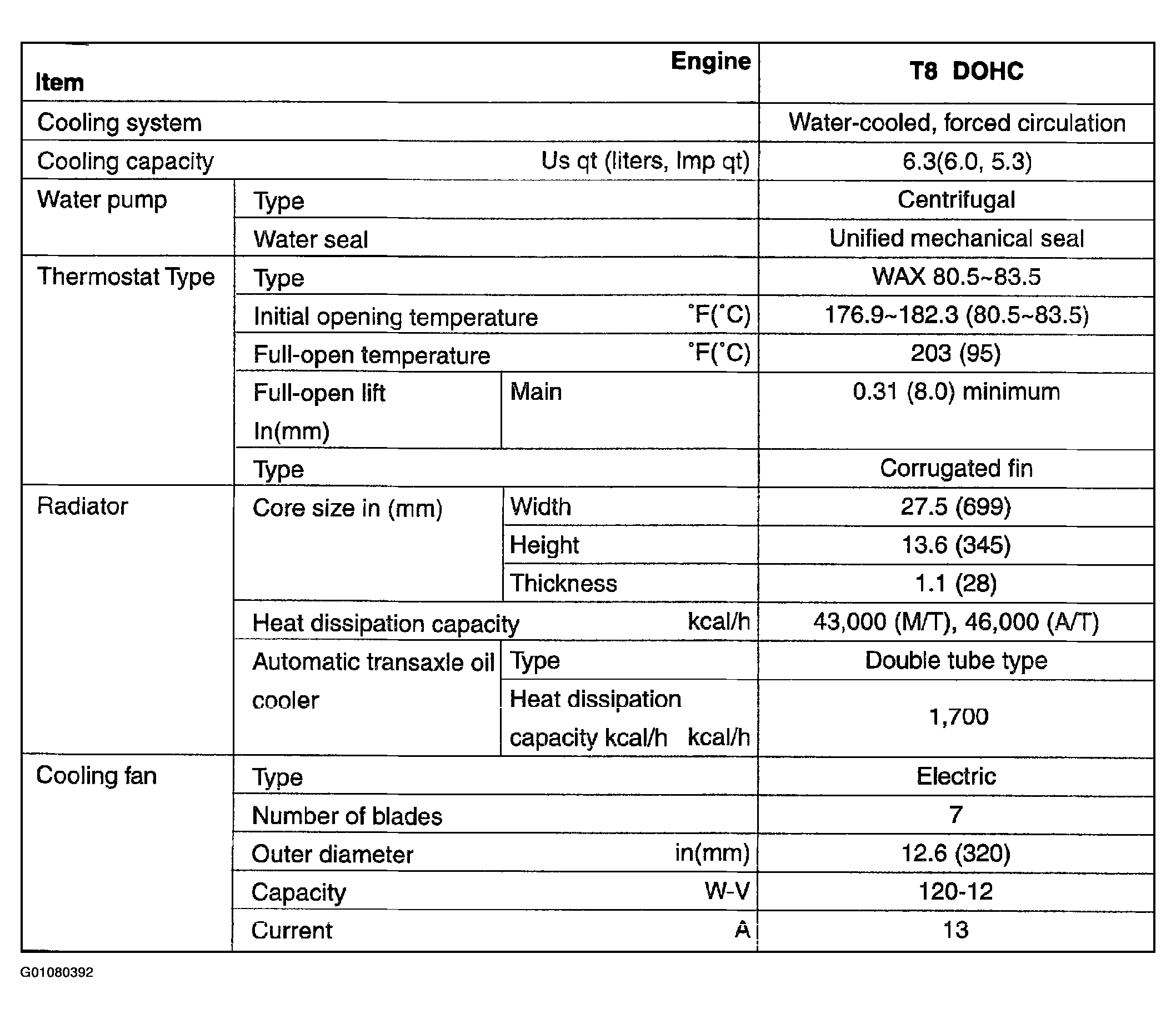

Fig 1: Cooling System Specifications
G01080392Courtesy of KIA MOTORS AMERICA, INC.

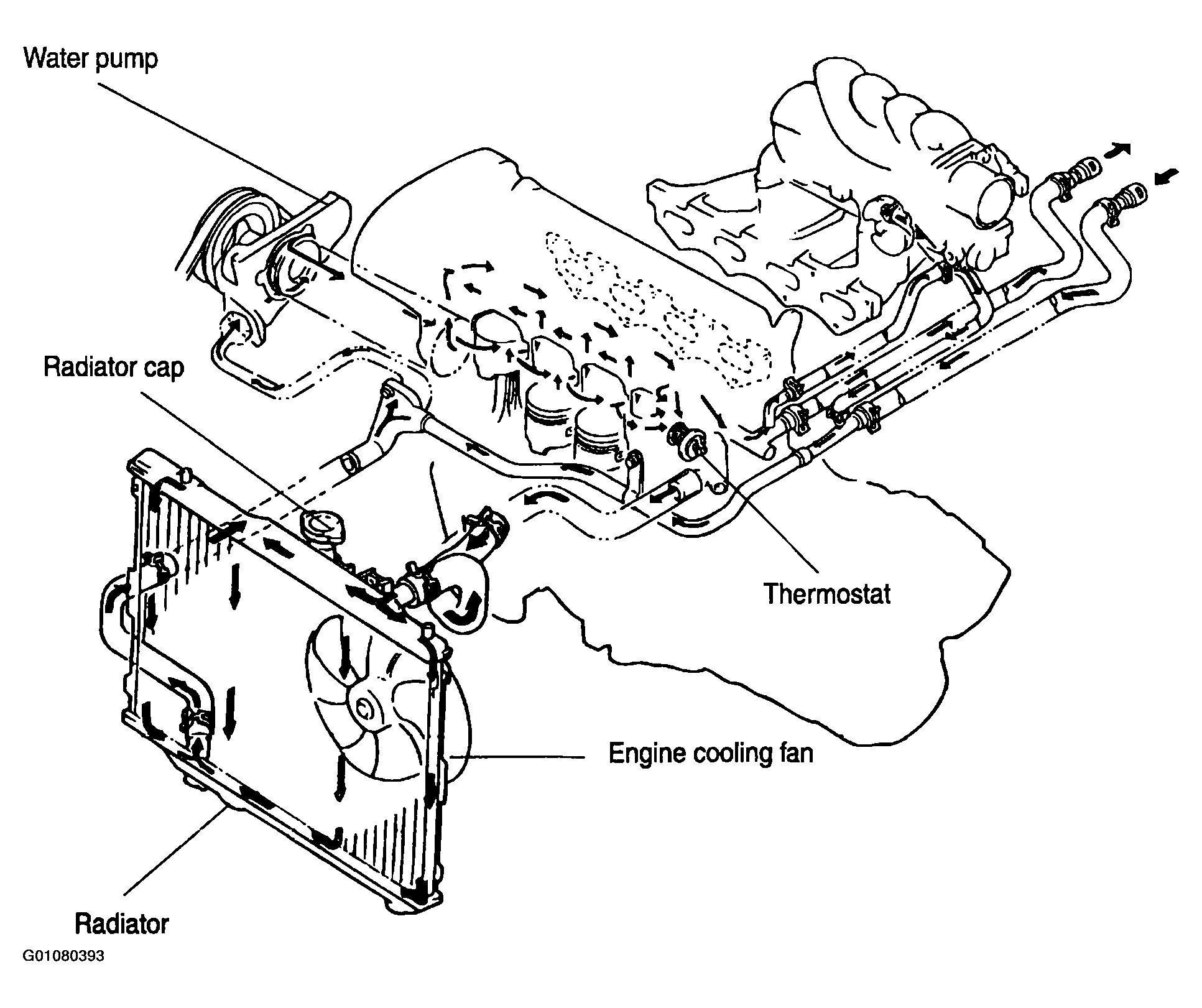

Fig 2: Cooling System Functional Diagram
G01080393Courtesy of KIA MOTORS AMERICA, INC.
