Lubrication System: Specification: Notes

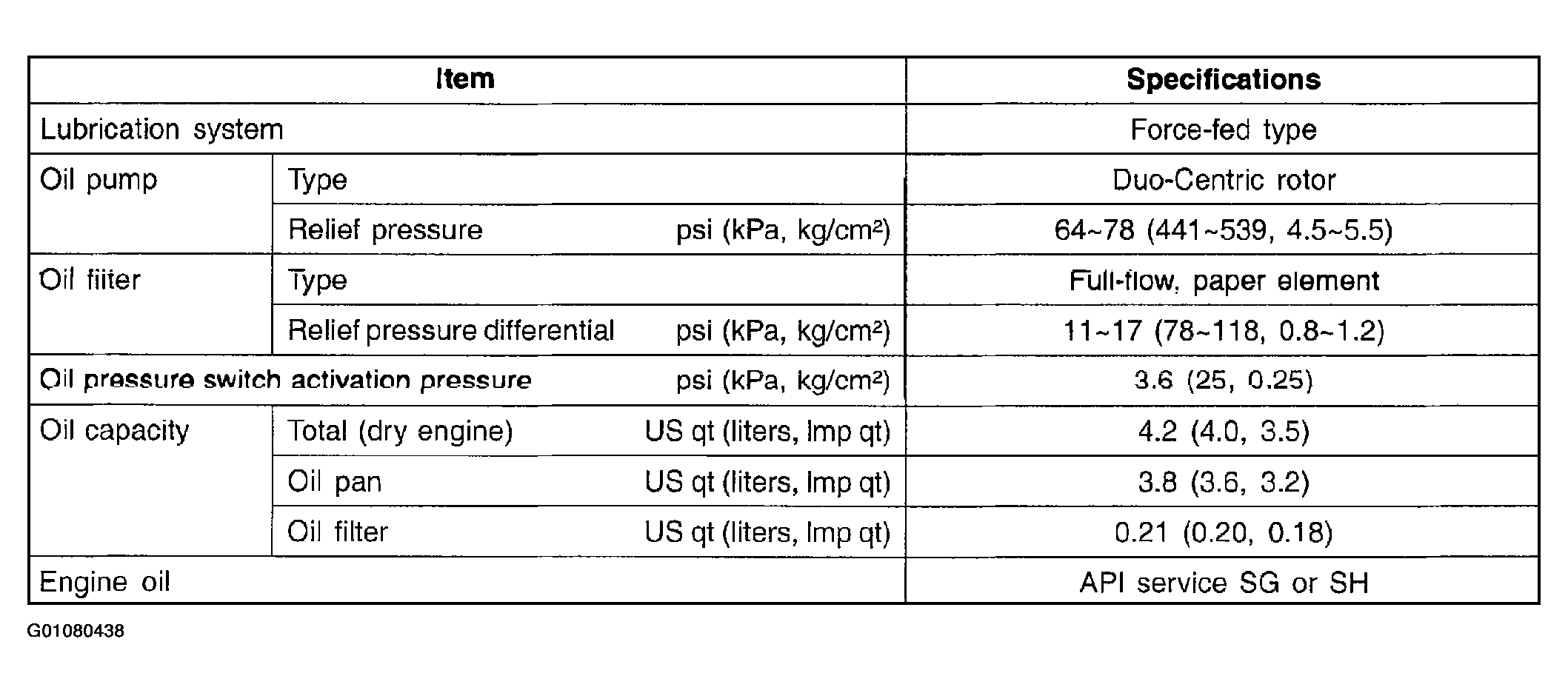

Fig 1: Lubrication System Specification Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
