Front Axle Hub/Knuckle: Assembly

  1. Press in new wheel studs.
    Fig 1: Pressing In New Wheel Studs
    G01078337Courtesy of KIA MOTORS AMERICA, INC.
  2. Mark new dust shield to match the removed dust shield.

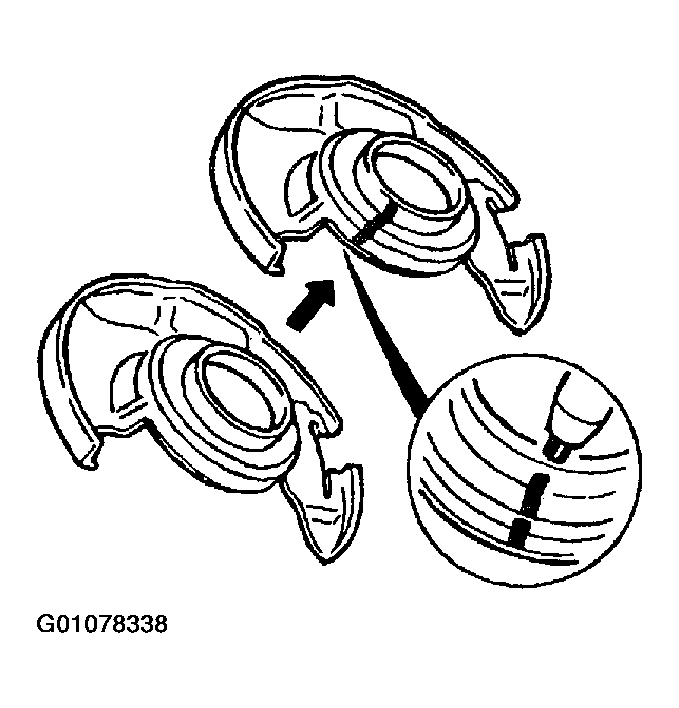

    Fig 2: Marking New Dust Shield To Match The Removed Dust Shield
    G01078338Courtesy of KIA MOTORS AMERICA, INC.
  3. Align mark on new dust shield with knuckle.
  4. Install new dust shield with suitable tool.
    Fig 3: Installing New Dust Shield
    G01078339Courtesy of KIA MOTORS AMERICA, INC.
  5. Install new wheel bearing with suitable tool.
    Fig 4: Installing New Wheel Bearing
    G01078340Courtesy of KIA MOTORS AMERICA, INC.
  6. Install front wheel hub assembly with suitable tool.
    Fig 5: Installing Front Wheel Hub Assembly
    G01078341Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    1. Use a new oil seal, and apply grease to seal.
    2. Install oil seal so that it is flush with knuckle.
  7. Install new oil seal with SST (0K993 331 016).

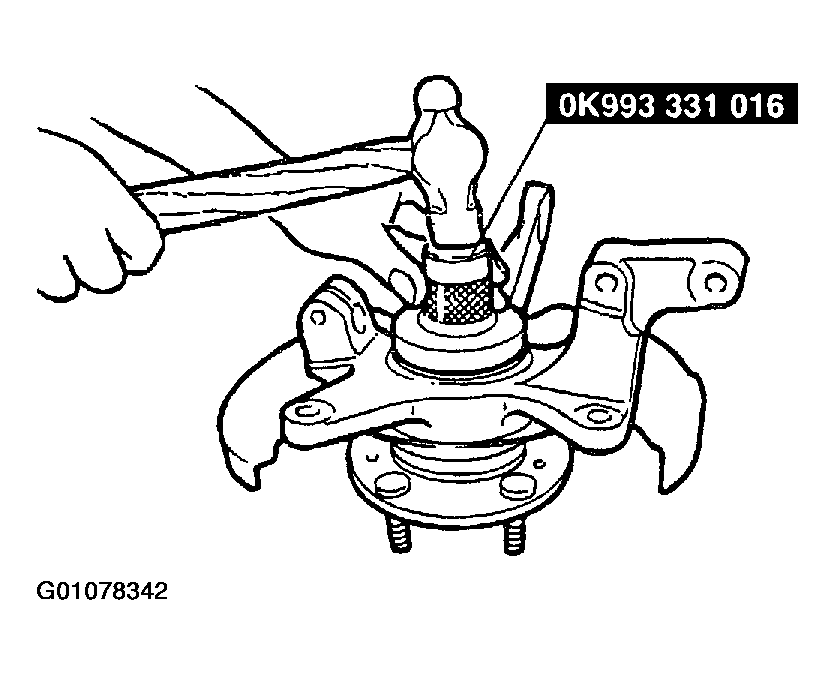

    Fig 6: Installing New Oil Seal
    G01078342Courtesy of KIA MOTORS AMERICA, INC.
