Front Axle Hub/Knuckle: Disassembly

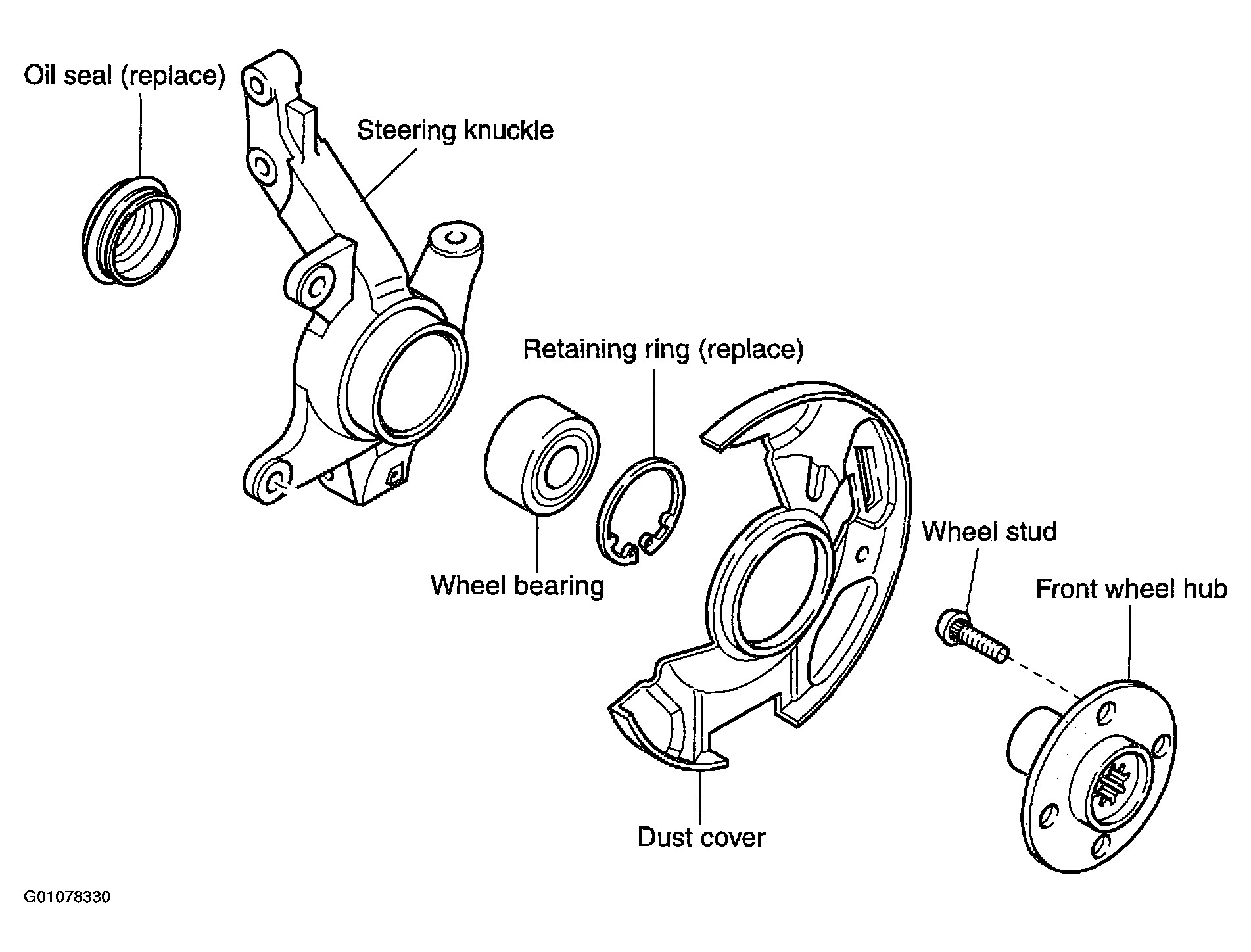

Fig 1: Exploded View Of Knuckle Assembly

Courtesy of KIA MOTORS AMERICA, INC.

Remove oil seal from front wheel hub.
Remove front wheel hub assembly with SST (0K930 331 AA0).

Fig 2: Removing Front Wheel Hub Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Remove retaining ring.
NOTE: If the bearing inner race remains on wheel hub, grind a section of inner race until approximately 0.5 mm (0.020 in) remains. Remove race with a chisel.

Fig 3: Removing Knuckle Assembly Bearing Inner Race
Courtesy of KIA MOTORS AMERICA, INC.
Remove wheel bearing with SST (0K 930 331 AA0).

Fig 4: Removing Wheel Bearing
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
1. Do not remove dust shield unless necessary.
2. Do not reuse dust shield if removed.
Mark relative positions of dust shield and knuckle for proper reassembly.

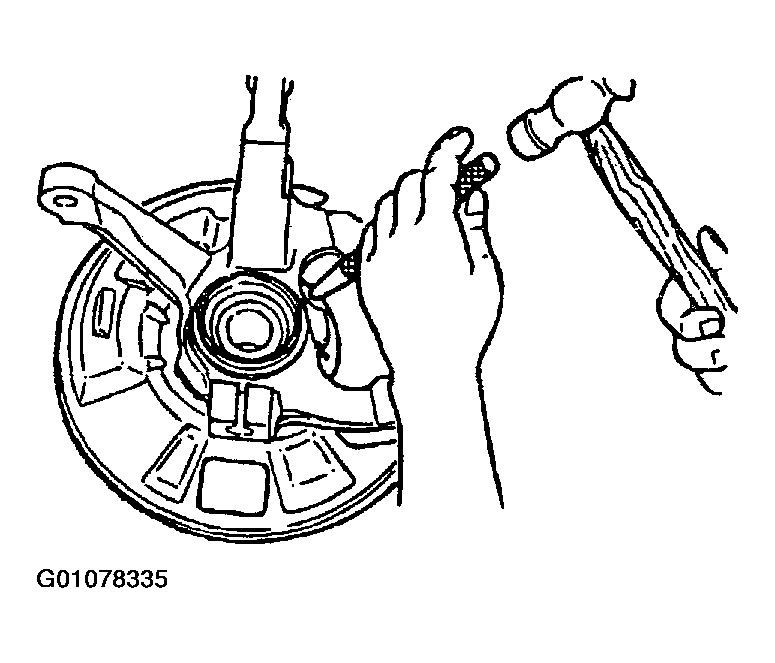

Fig 5: Marking Relative Positions Of Dust Shield And Knuckle
Courtesy of KIA MOTORS AMERICA, INC.
Remove dust shield with a chisel.

Fig 6: Removing Dust Shield
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
1. Do not remove wheel studs unless necessary.
2. Do not reuse wheel studs if removed.
Remove wheel studs with a press.

Fig 7: Removing Wheel Studs
Courtesy of KIA MOTORS AMERICA, INC.
