Rear Axle/Hub: Component

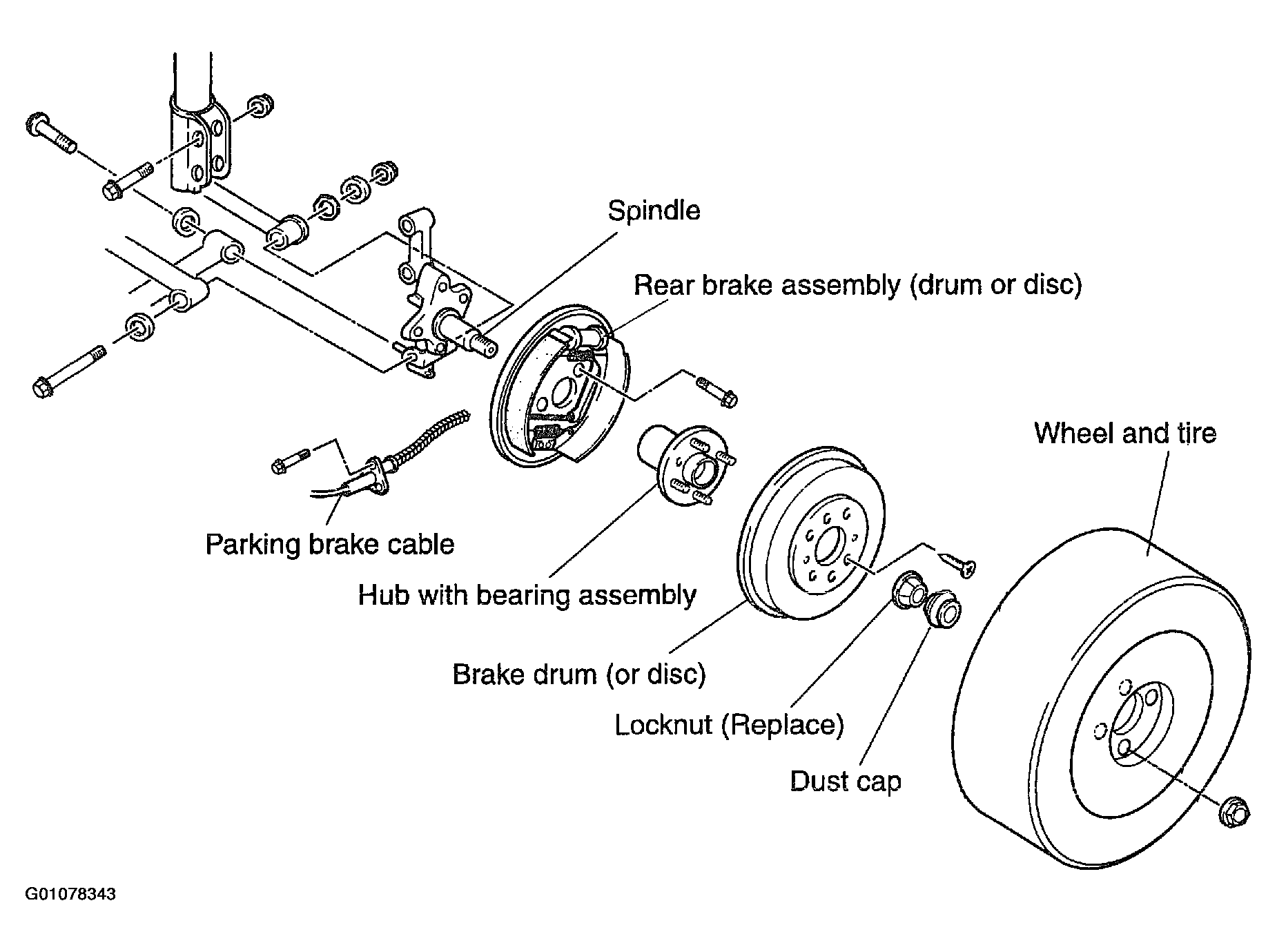

Fig 1: Exploded View Of Rear Axle Hub Assembly
G01078343Courtesy of KIA MOTORS AMERICA, INC.
