Torque Specifications
TORQUE SPECIFICATIONS
| Application | Ft. Lbs. (N.m) | |||||
|---|---|---|---|---|---|---|

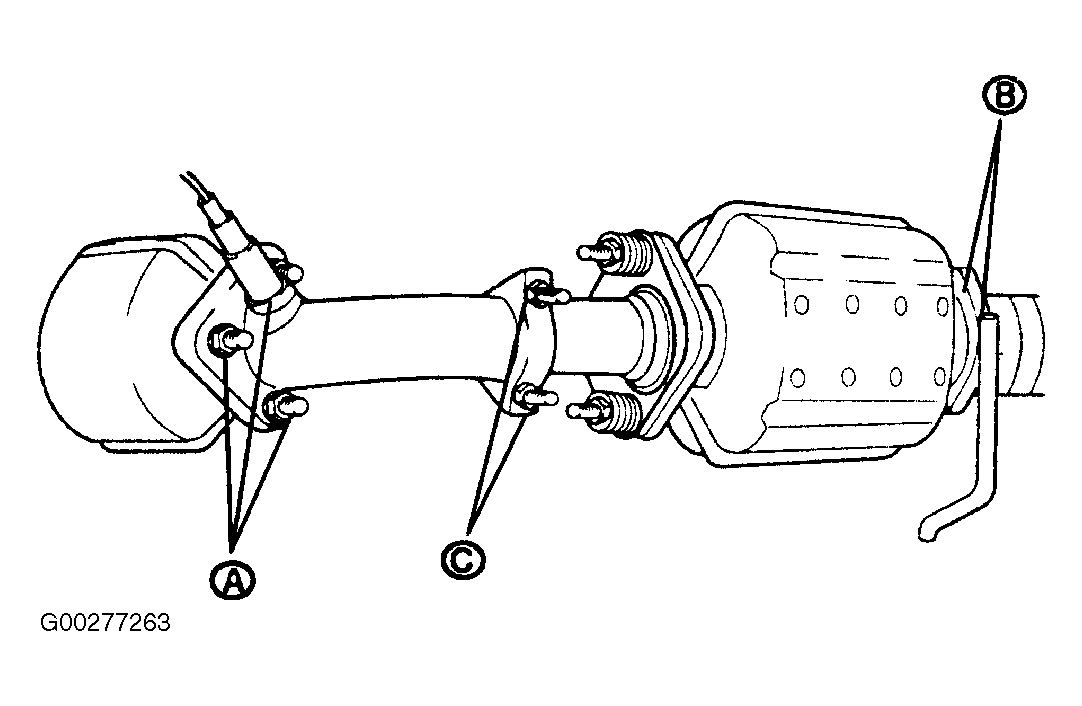

| Exhaust Pipe Bolt (1) | ||||||
| "A" | 30-41 (40-55) | |||||
| "B" | 51-69 (69-94) | |||||
| "C" | 15-20 (21-27) | |||||
| Lower Intake Manifold Support Bracket Bolt | 27-38 (37-52) | |||||
| Starter Mounting Bolts | 27-38 (37-52) | |||||
| INCH Lbs. (N.m) | ||||||
| Brush Plate Screw | 21-39 (2.4-4.4) | |||||
| Drive End Housing Bolt | 34-63 (3.8-7.1) | |||||
| Cable Nut | (2) | |||||
| Starter Rear Cover Bolts | (2) | |||||
| Starter Solenoid Bolts | 36-50 (4-8) | |||||
| Terminal B | 87-106 (10-12) | |||||
| Transmission Range (TR) Switch Bolt | (2) | |||||
| Upper Intake Manifold Support Bracket Bolt | 86.7-106.2 (9.8-12) | |||||
|
||||||
