Front Stabilizer Bar: Components

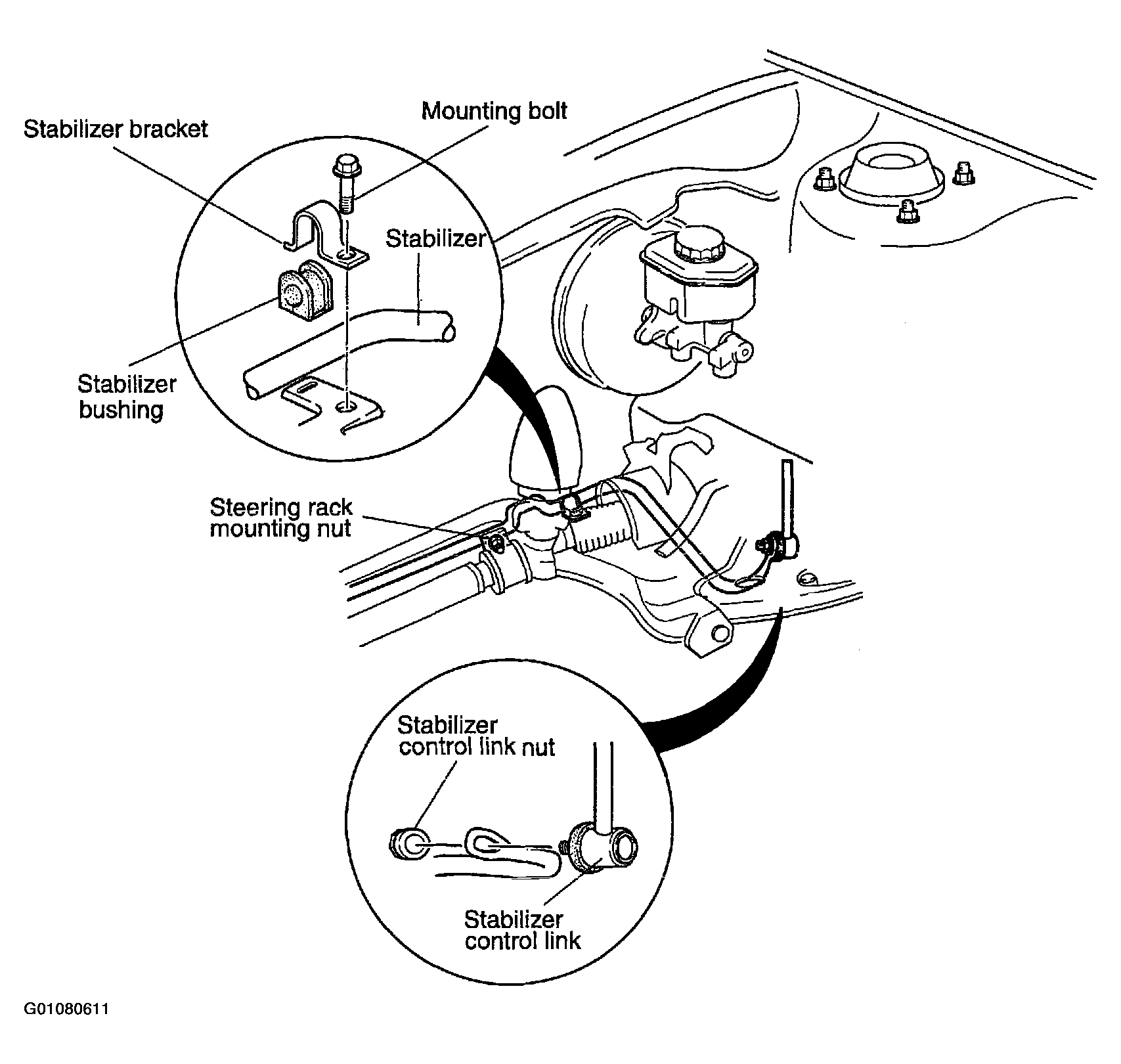

Fig 1: Illustrating Front Stabilizer Bar Components

G01080611

Courtesy of KIA MOTORS AMERICA, INC.
