Steering Control Module

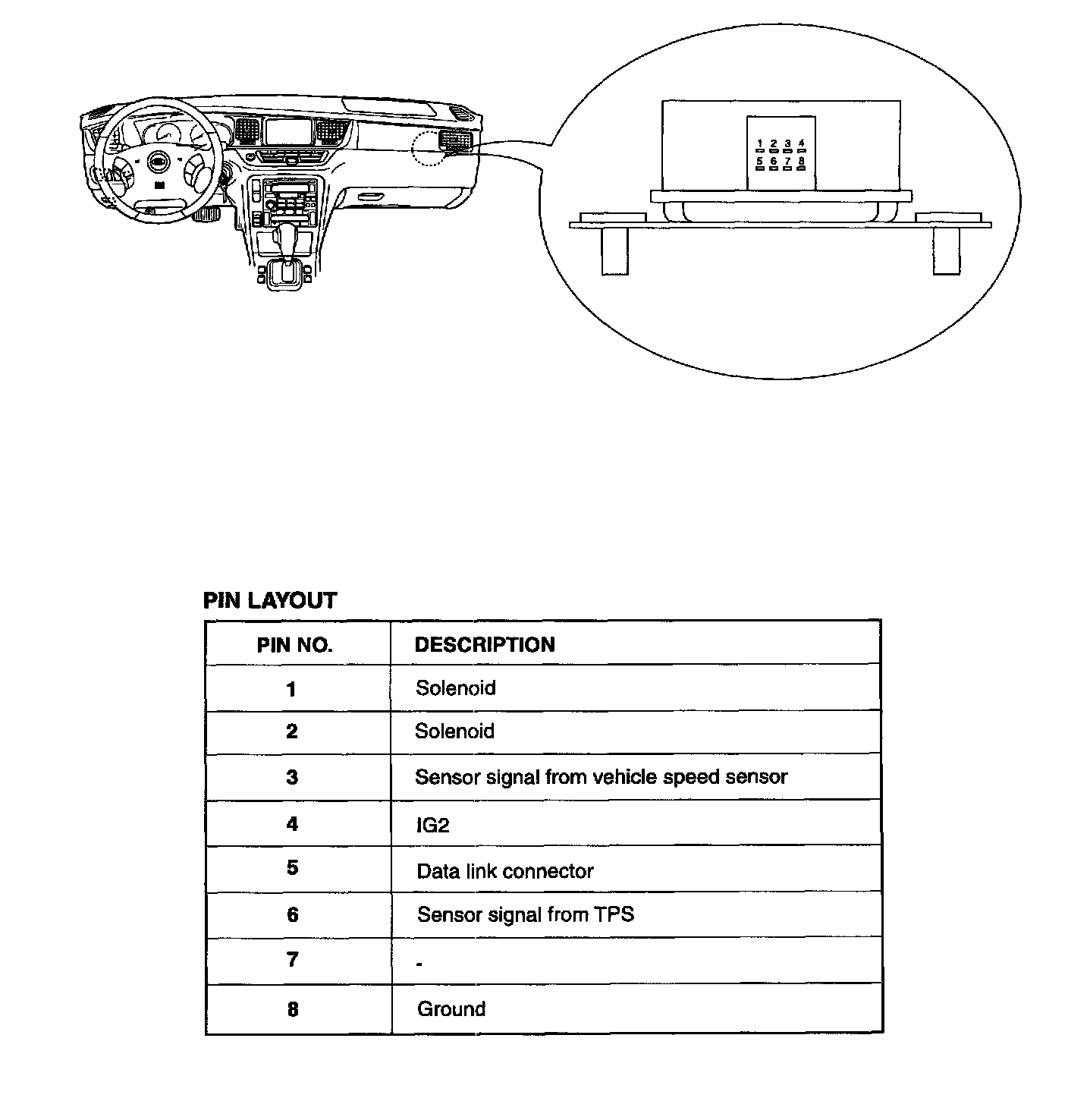

ELECTRONIC POWER STEERING CONTROL MODULE
The EPSCM is installed right of the passenger airbag module.
