System Composition

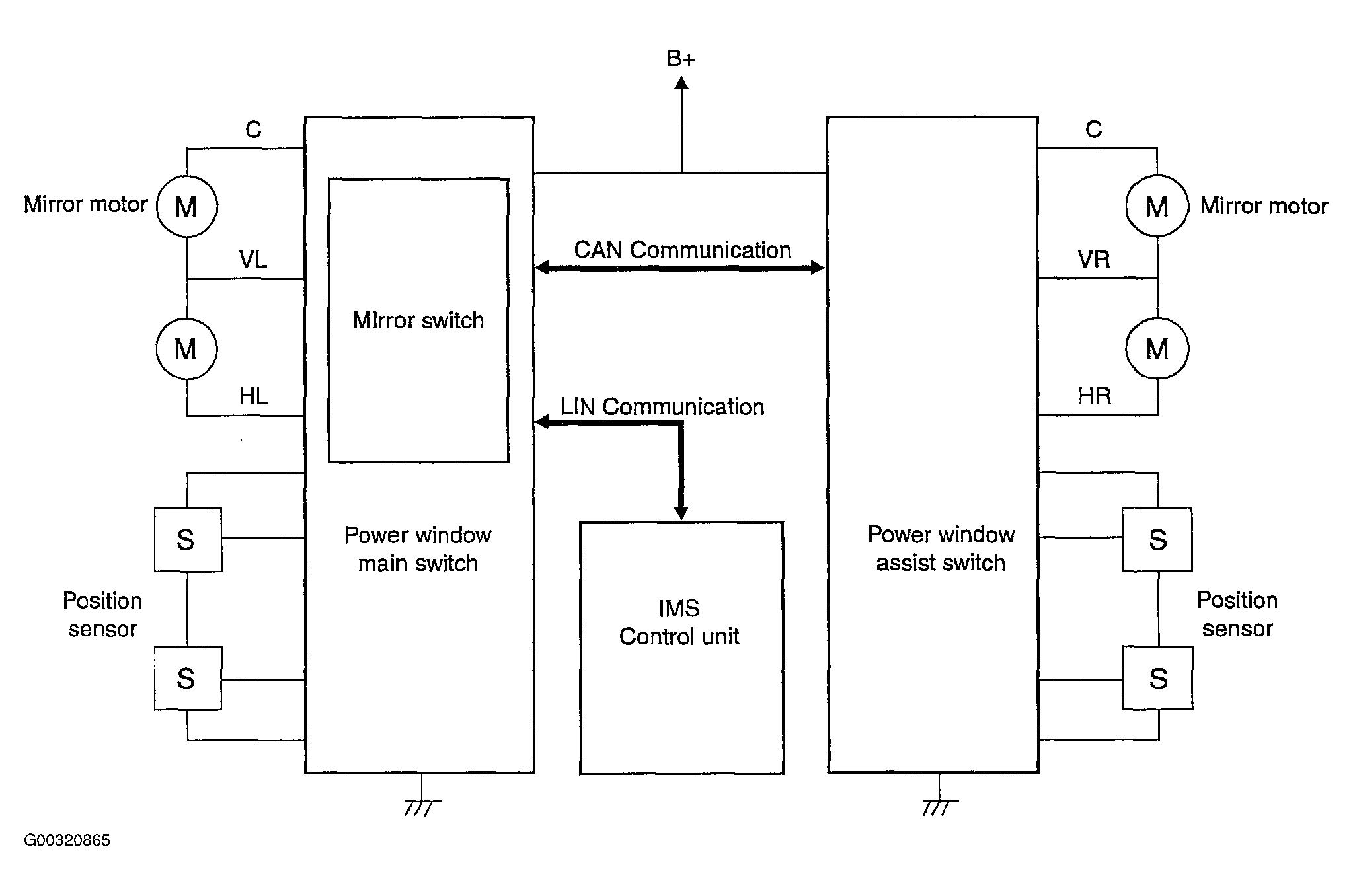

Fig 1: IMS Mirror Control System Composition
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
