Circuit Diagram

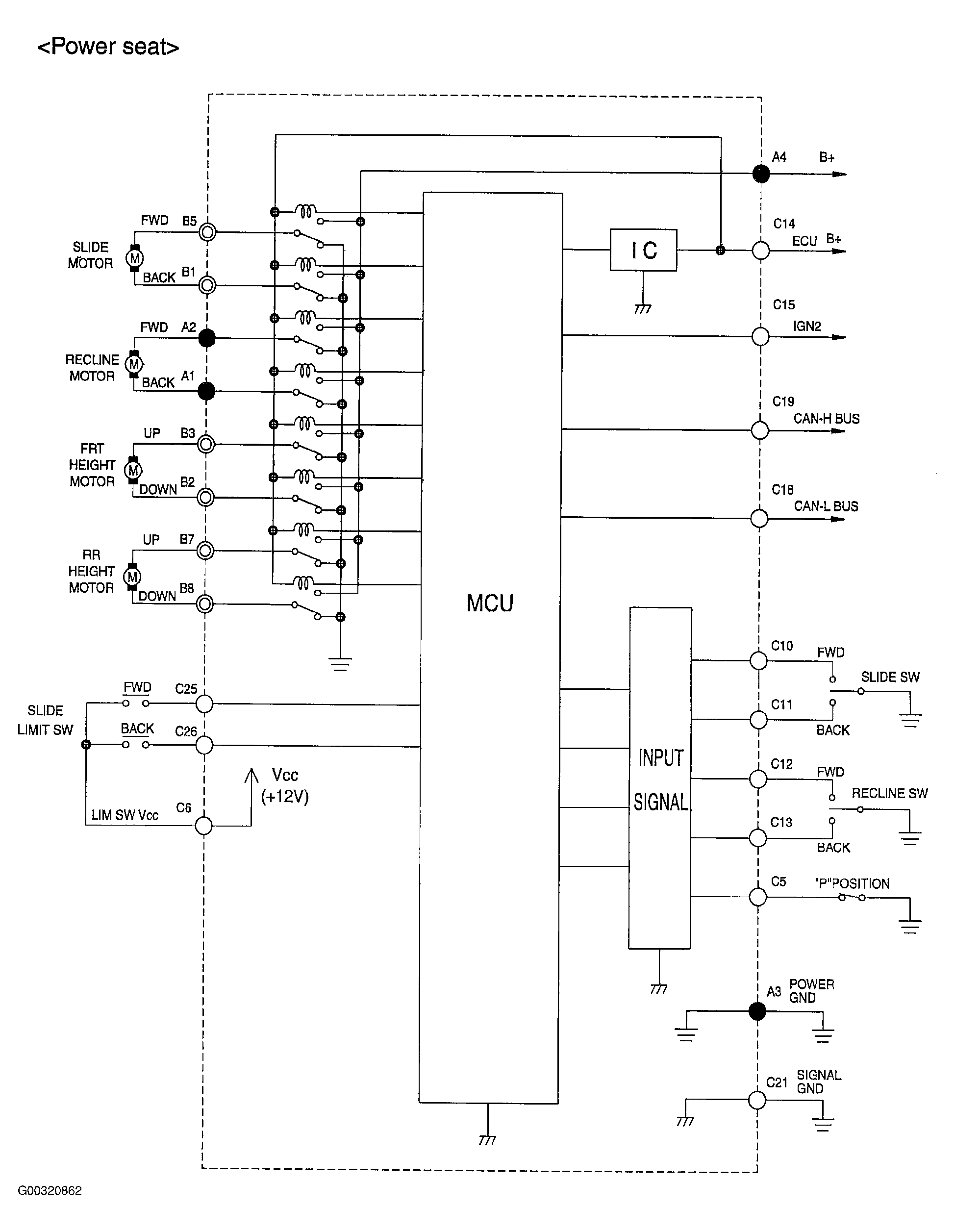

Fig 1: Power Seat Circuit Diagram
G00320862Courtesy of KIA MOTORS AMERICA, INC.

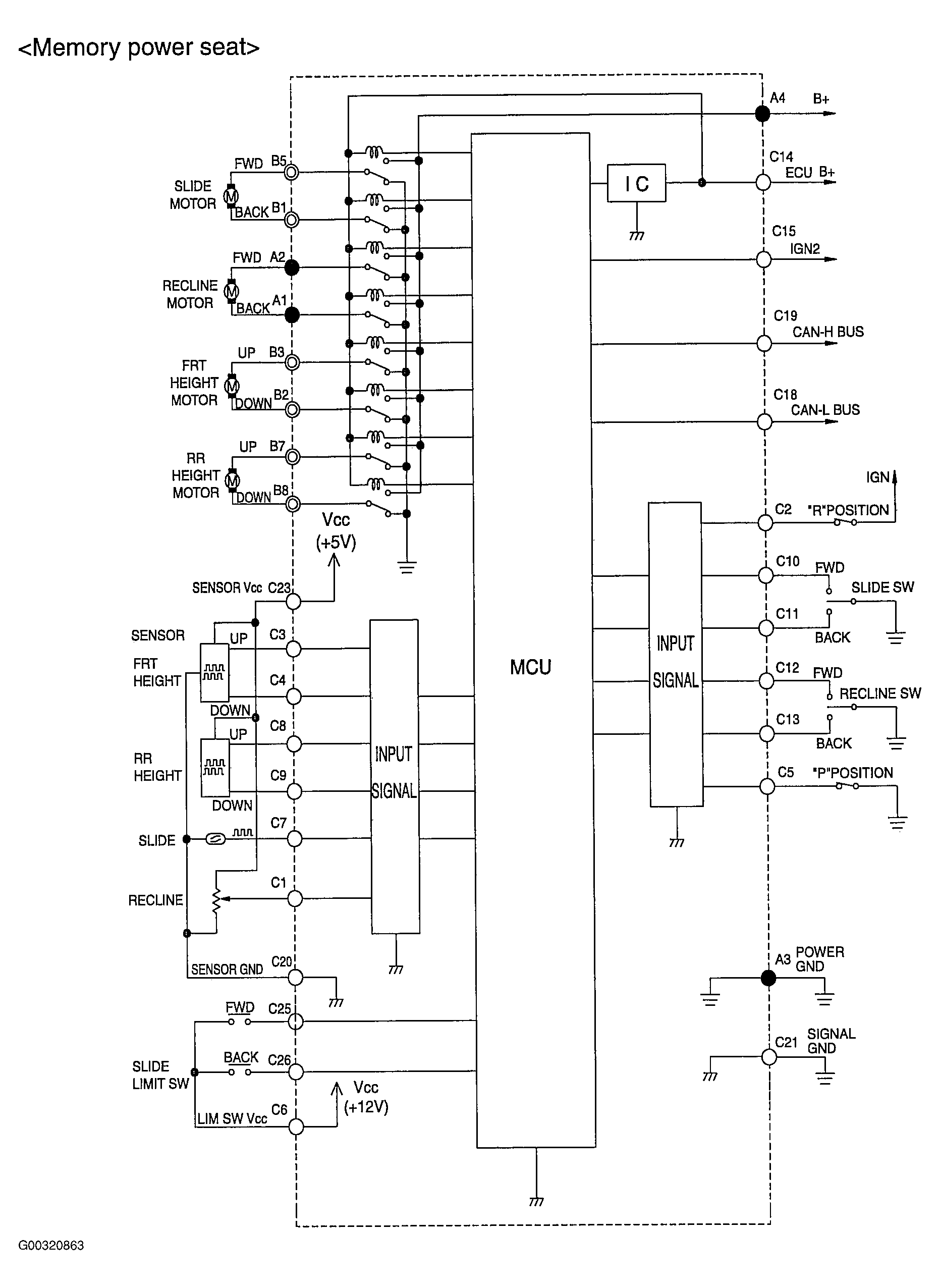

Fig 2: Memory Power Seat Circuit Diagram
G00320863Courtesy of KIA MOTORS AMERICA, INC.
