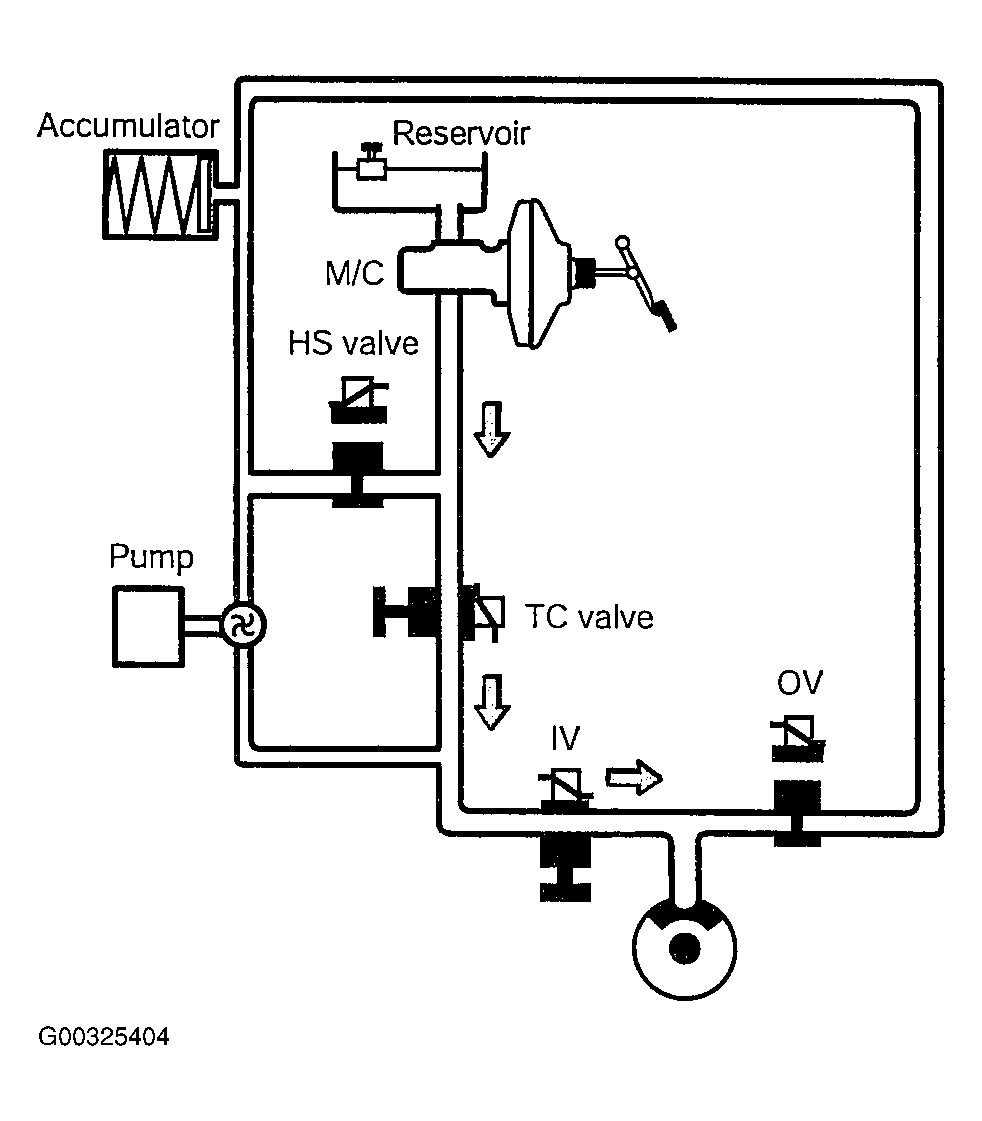

Normal Mode
- In the normal driving condition, TC valve (normally open) is the passage between the master cylinder and the each caliper.
- When brake pedal is applied, brake pressure is delivered to the caliper via NO-TC valve and all solenoid valves inside the hydraulic unit are deactivated.
- In case of TCS malfunction, it does not affect brake operation.
