Battery Visual Inspection (1)

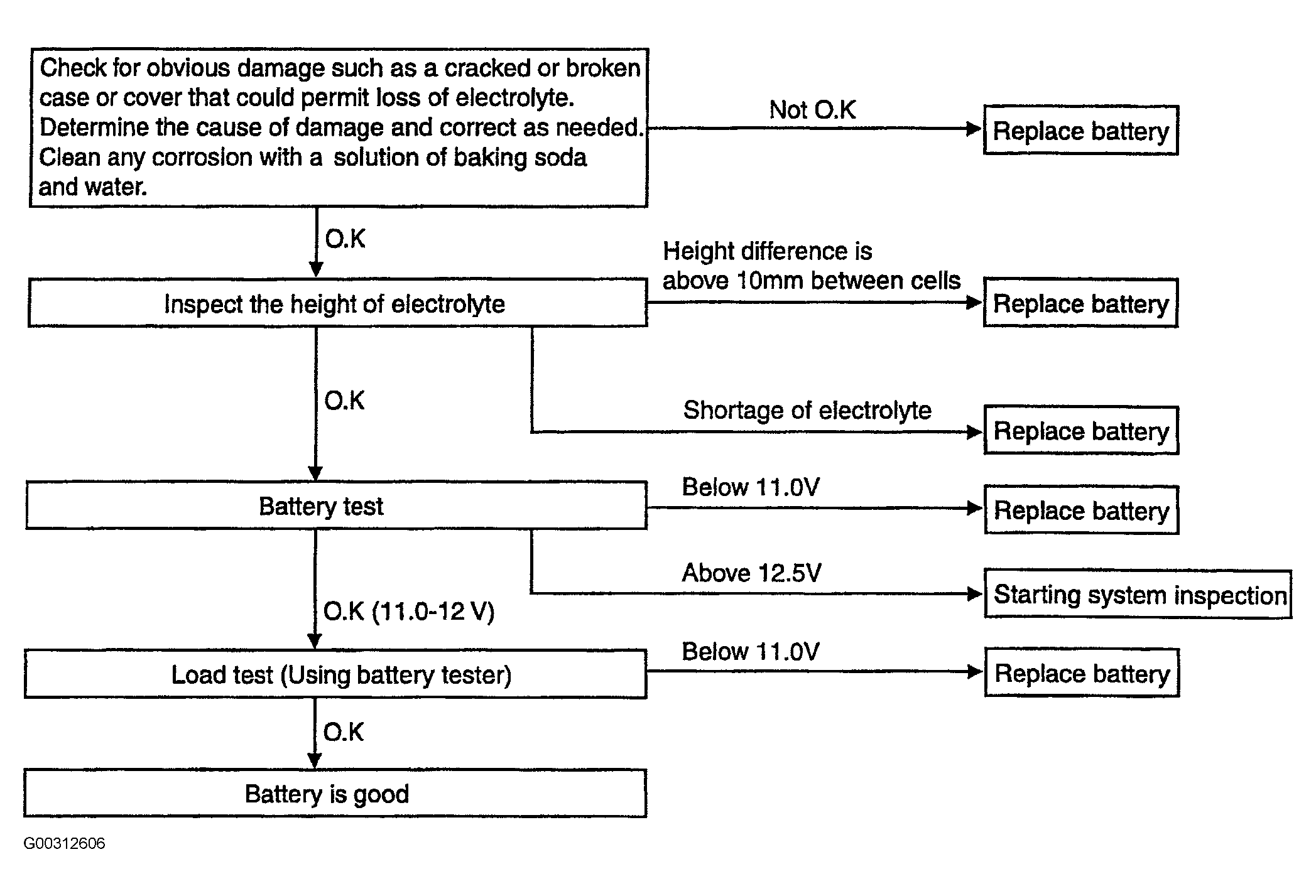

Fig 1: Battery Visual Inspection
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
