Intake Manifold: Notes

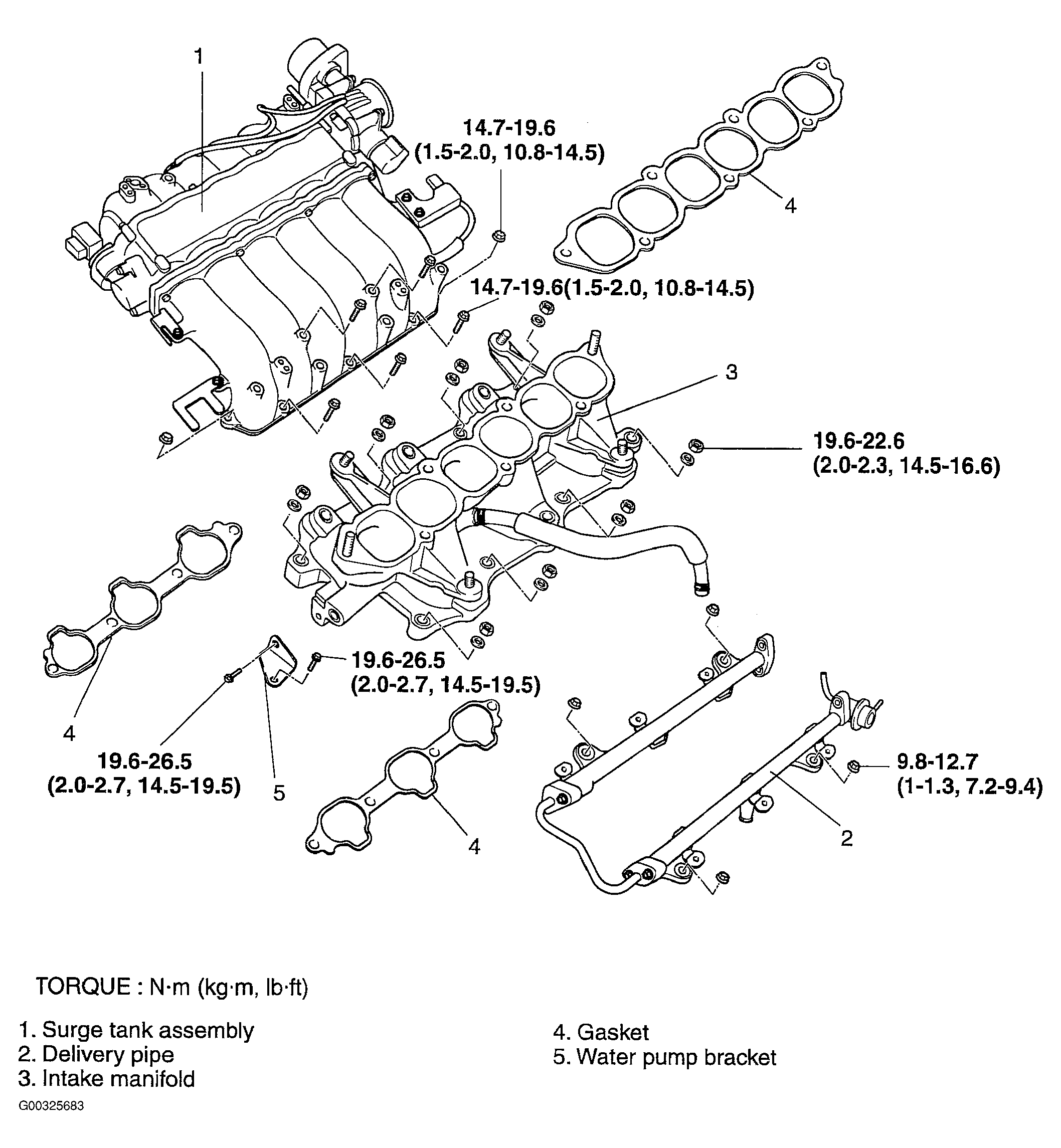

Fig 1: Identifying Intake Manifold Components
G00325683Courtesy of KIA MOTORS AMERICA, INC.
