Timing Belt: Notes

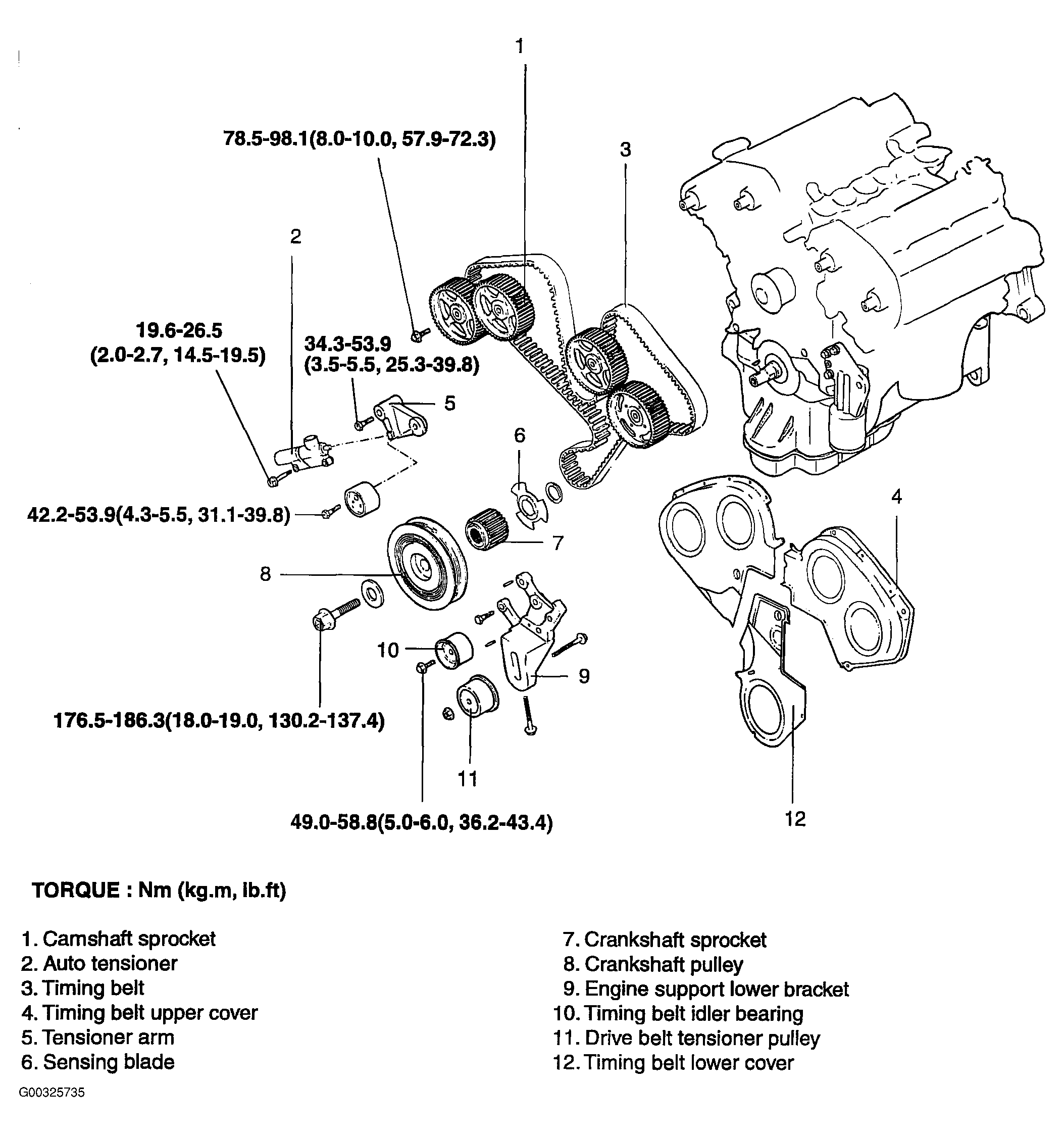

Fig 1: Identifying Timing Belt Components

G00325735

Courtesy of KIA MOTORS AMERICA, INC.
