Component Inspection

1. Specification:
   TEMPERATURE AND RESISTANCE SPECIFICATIONS



   Temperature °C (°F)	-40 (-40)	-30 (-22)	-20 (-4)	0 (32)	20 (68)	80 (176)	100 (212)	110 (230)	120 (248)
   Resistance (kΩ)	45.3	25.6	15.1	5.8	2.5	0.33	0.19	0.16	0.13
   Voltage (V)	4.48	4.34	4.12	3.46	2.57	0.64	0.39	0.34	0.27

   (error range is 2~3%.)

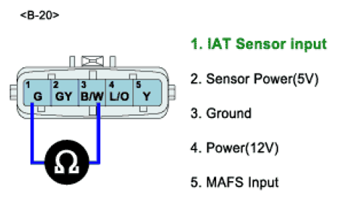

   Fig 1: Measuring Resistance Between Terminals 1 And 3 Of IAT Sensor Connector



YES

1. Substitute with a known-good PCM and check for proper operation. If the problem is corrected, replace PCM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

NO

1. Check IAT sensor for contamination, deterioration, or damage. Substitute with a known-good IAT sensor and check for proper operation. If the problem is corrected, replace IAT sensor and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
