Engine Mounts: Components

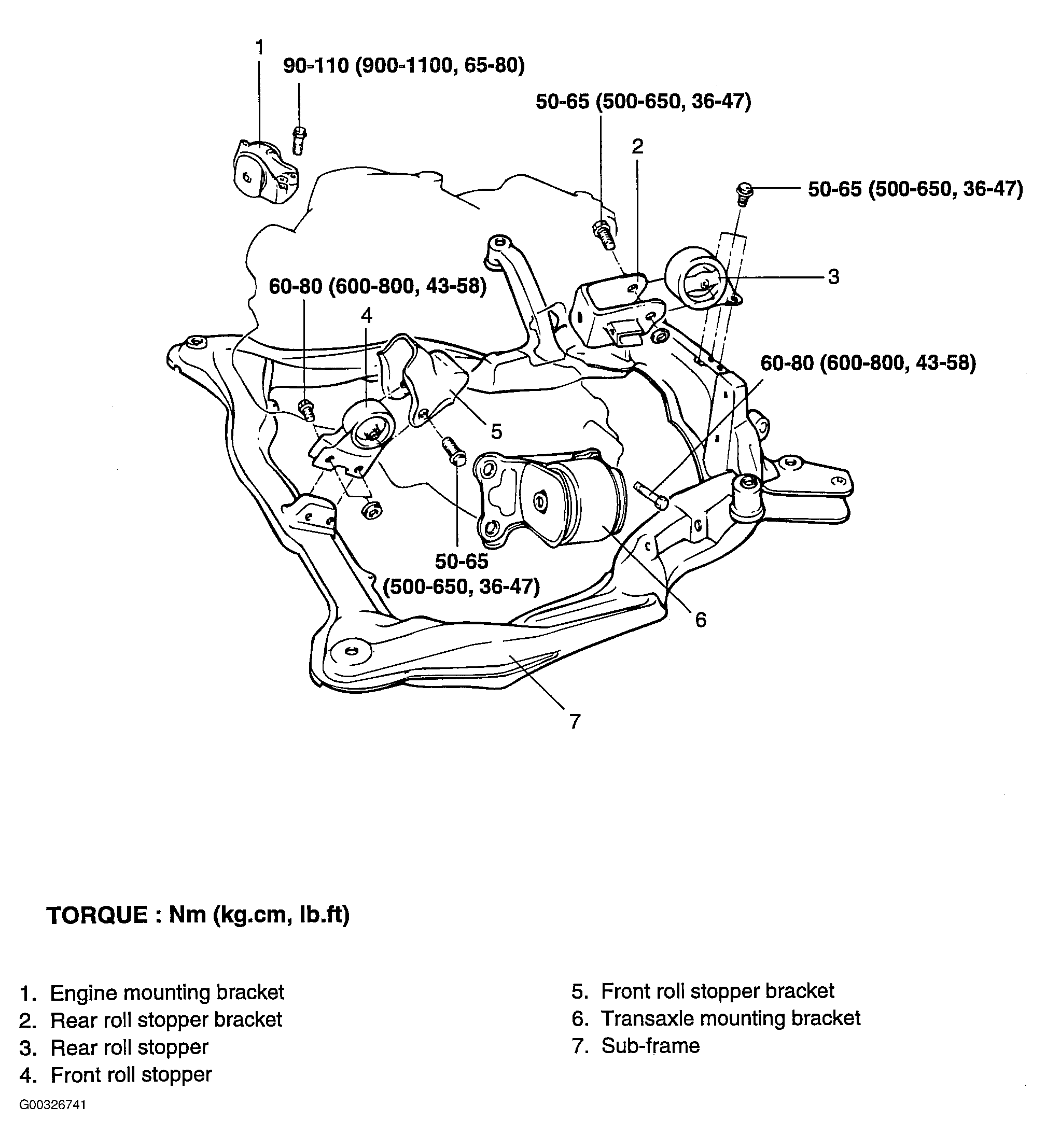

Fig 1: Exploded View Of Engine Mounts

G00326741

Courtesy of KIA MOTORS AMERICA, INC.
