Cooling System: Radiator: Components

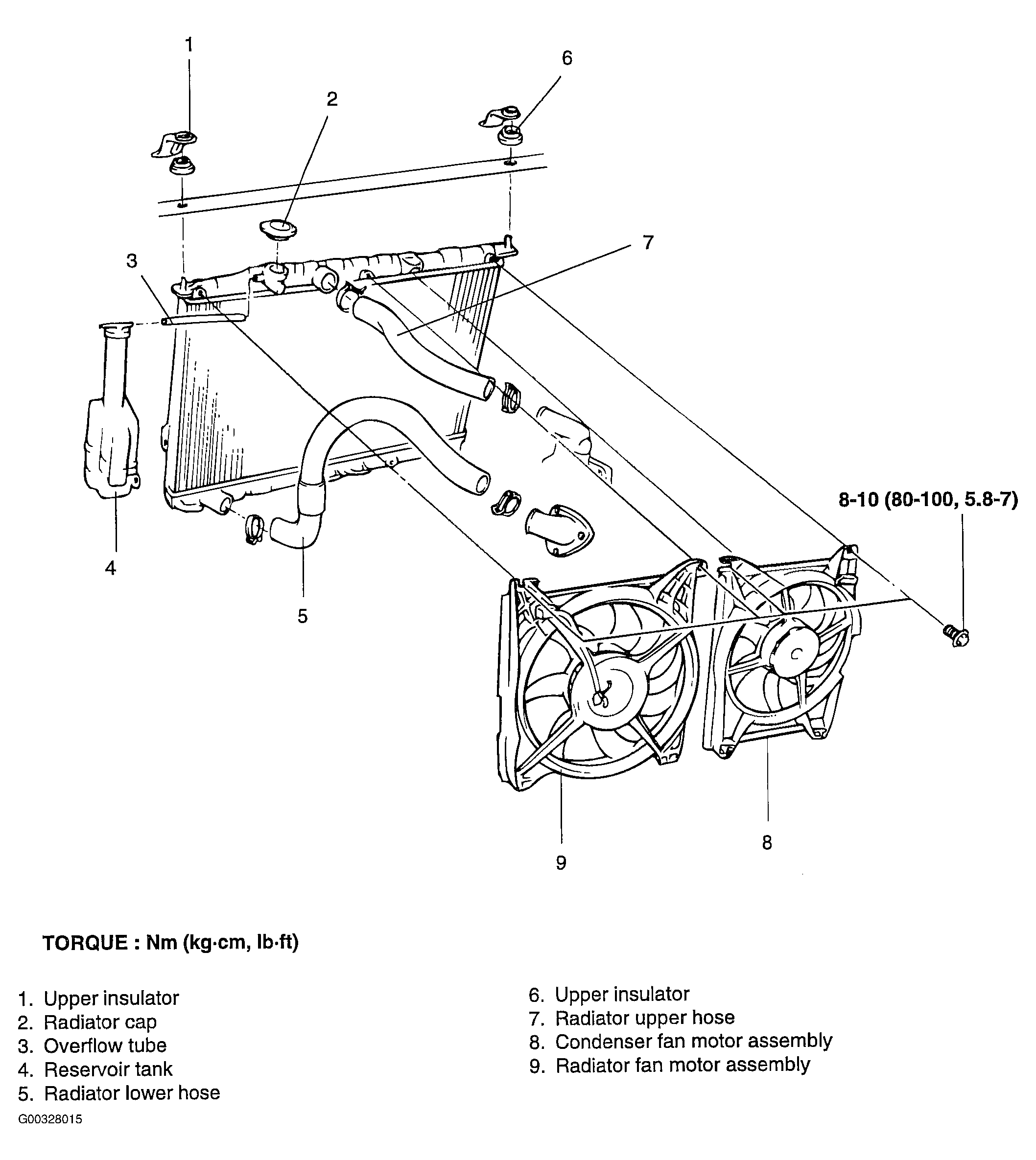

Fig 1: Removing & Installing Radiator

G00328015

Courtesy of KIA MOTORS AMERICA, INC.
