Oil Pump Case: Components

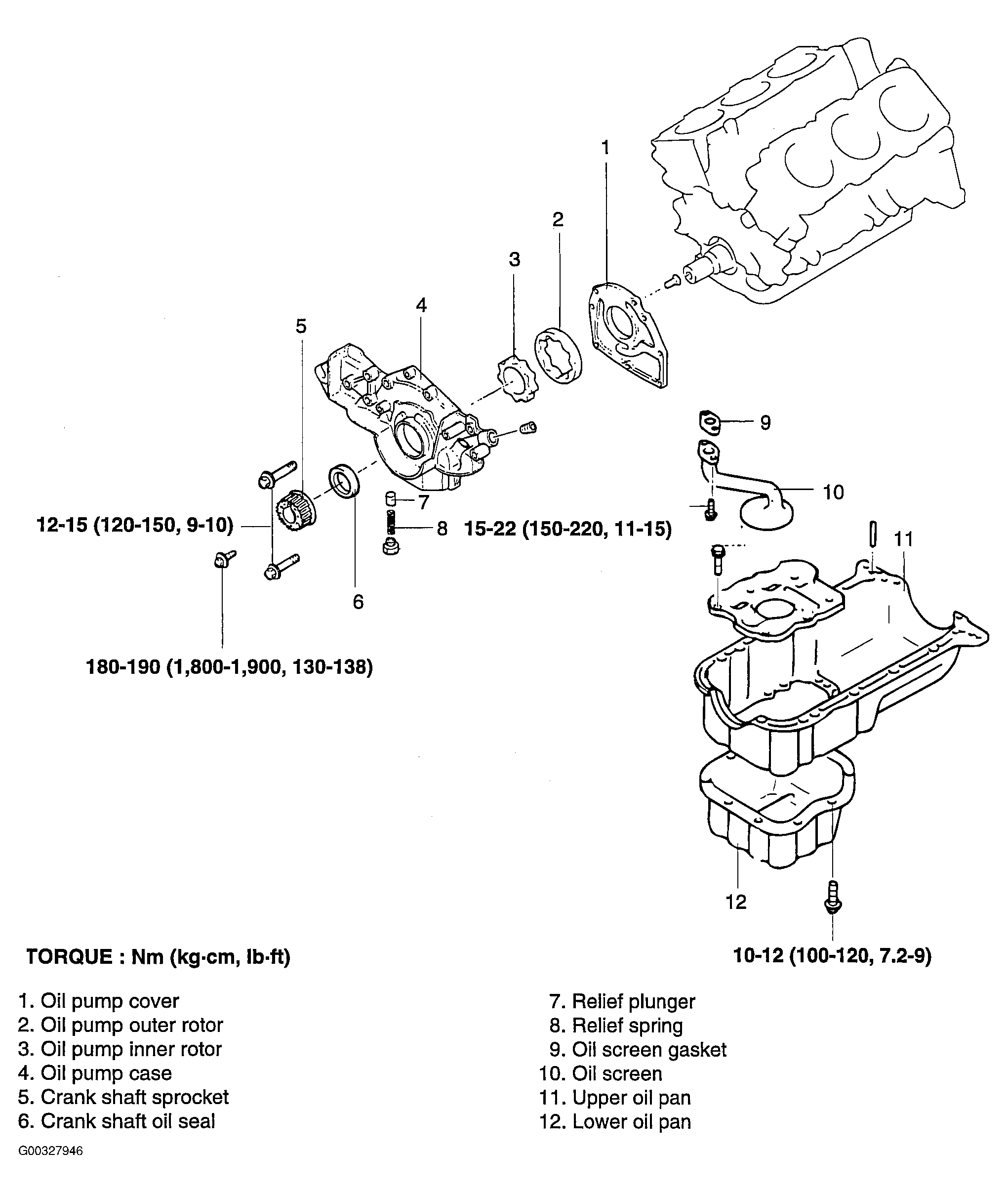

Fig 1: Removing & Installing Oil Pump Case

G00327946

Courtesy of KIA MOTORS AMERICA, INC.
