Connecting Rod & Piston: Components

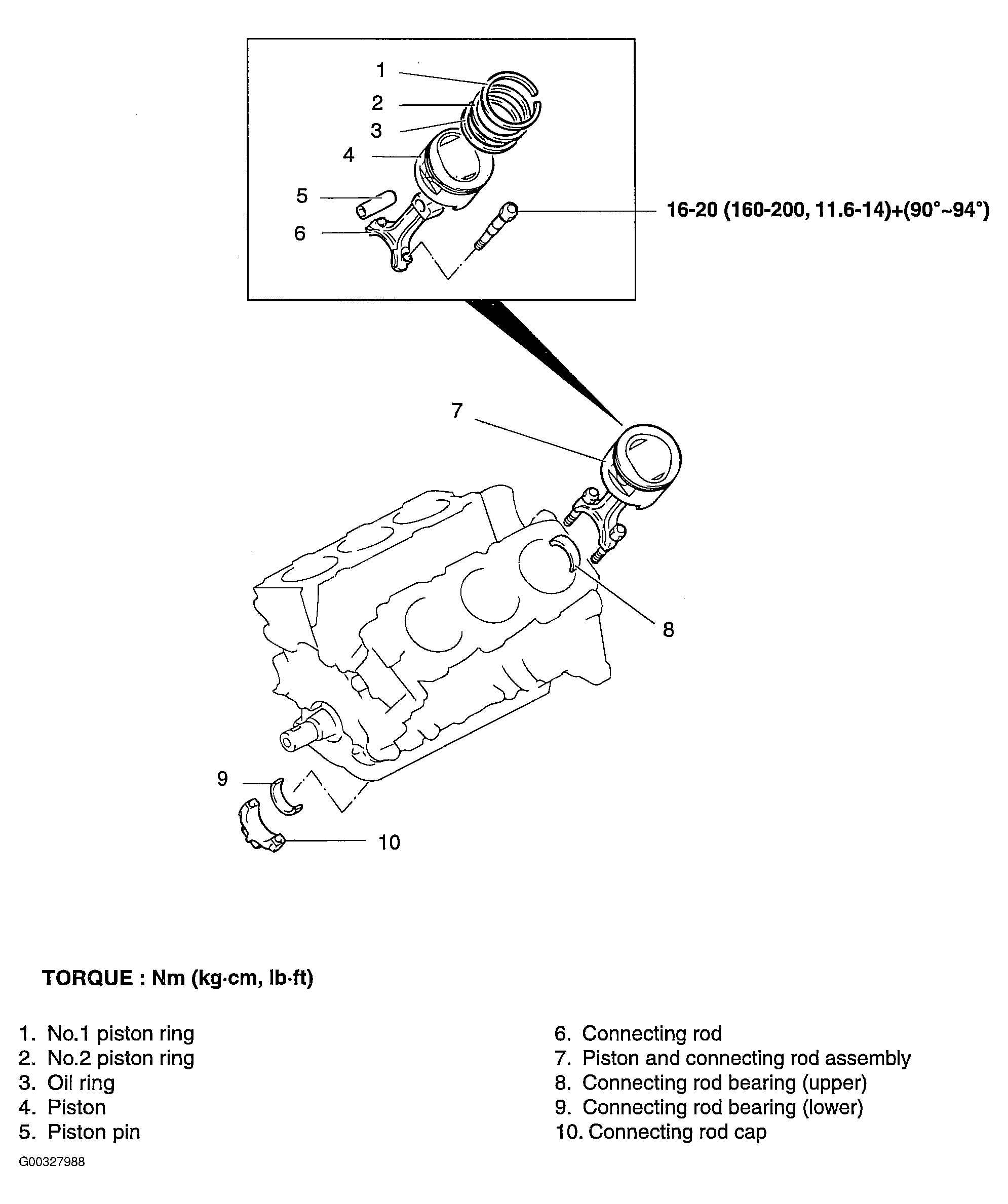

Fig 1: Removing & Installing Connecting Rod

G00327988

Courtesy of KIA MOTORS AMERICA, INC.
