Timing Belt: Components

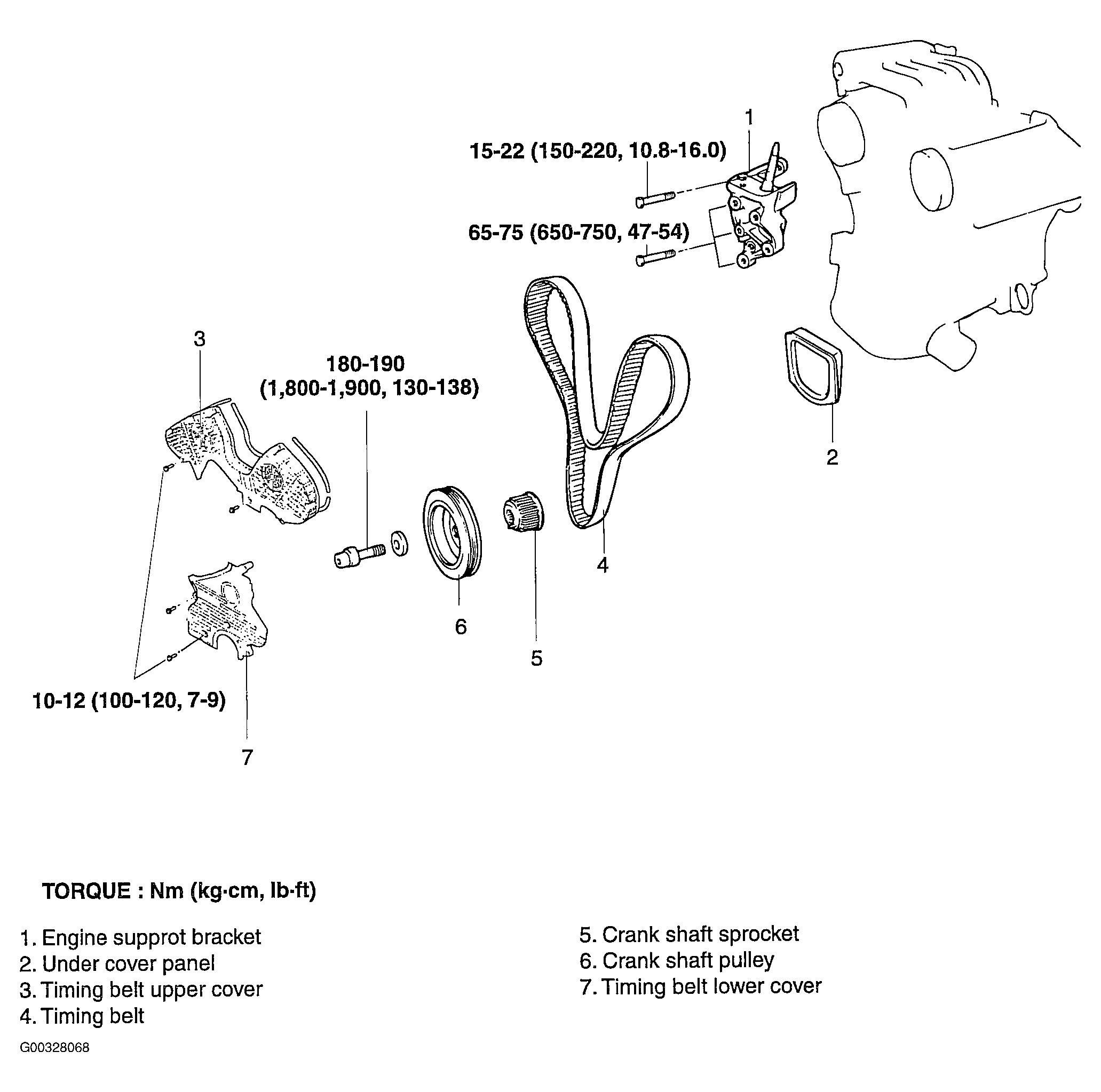

Fig 1: Exploded View Of Timing Belt Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
