Engine And Transaxle Assembly: Components

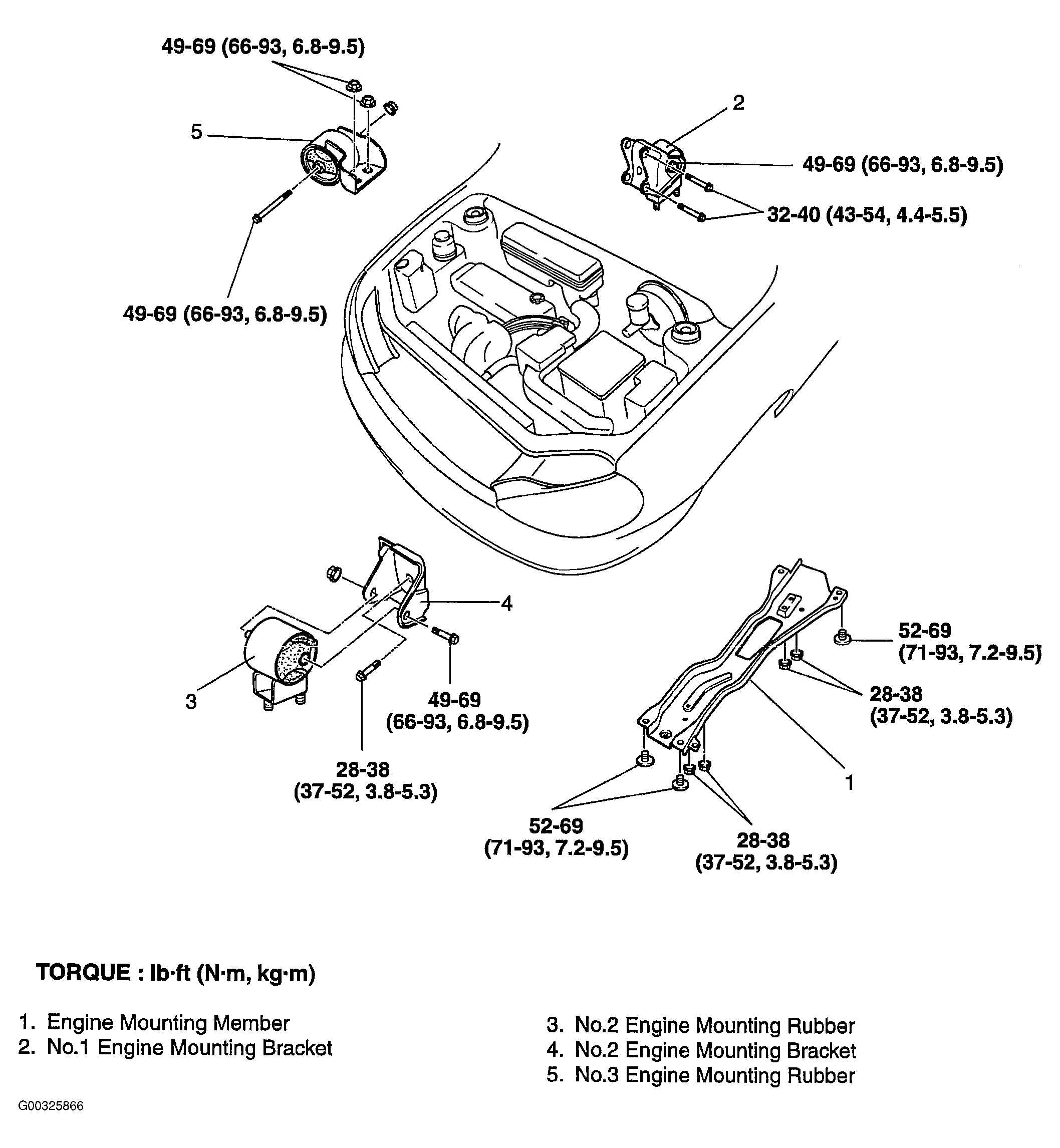

Fig 1: Engine & Transaxle Assembly Replacement Components With Torque Specifications (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Engine & Transaxle Assembly Replacement Components With Torque Specifications (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 3: Engine & Transaxle Assembly Replacement Components With Torque Specifications (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 4: Engine & Transaxle Assembly Replacement Components With Torque Specifications (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
