Charging Systems: General: Specifications

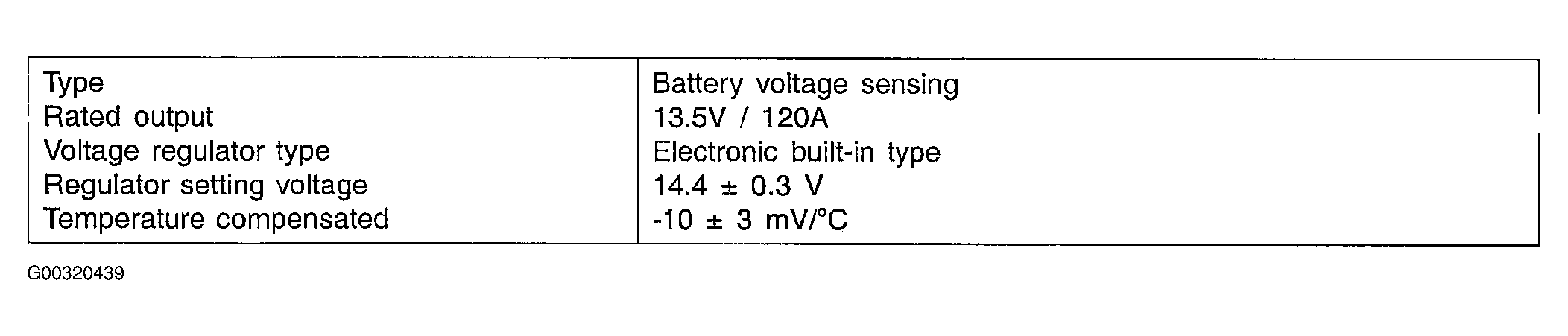

Fig 1: Generator Specifications

G00320439

Courtesy of KIA MOTORS AMERICA, INC.
