Charging Systems: Generator: Installation
- Place the alternator and insert a support bolt (Do not insert a nut this time.)

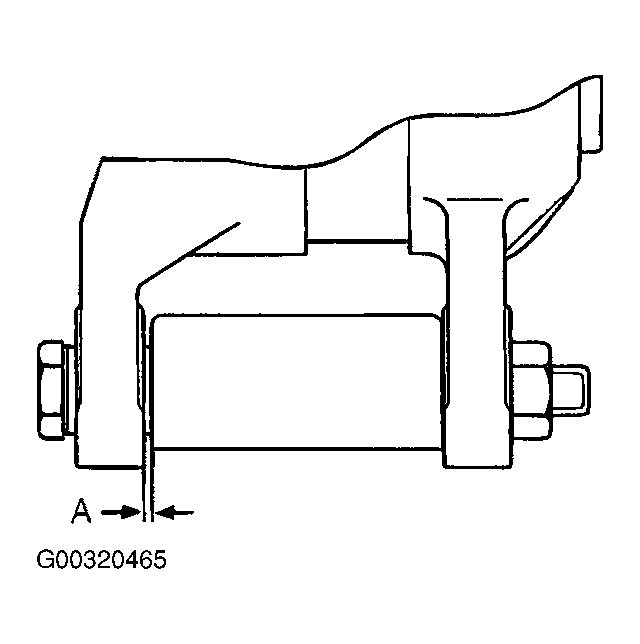

- After pushing the alternator forward, count that how many spacers (a spacer thickness : 0.198 mm) should be inserted between the alternator front leg and front case as shown in "A".
- After inserting spacers, insert and tighten a nut securely.
