Engine Coolant Hose/Pipes: Components

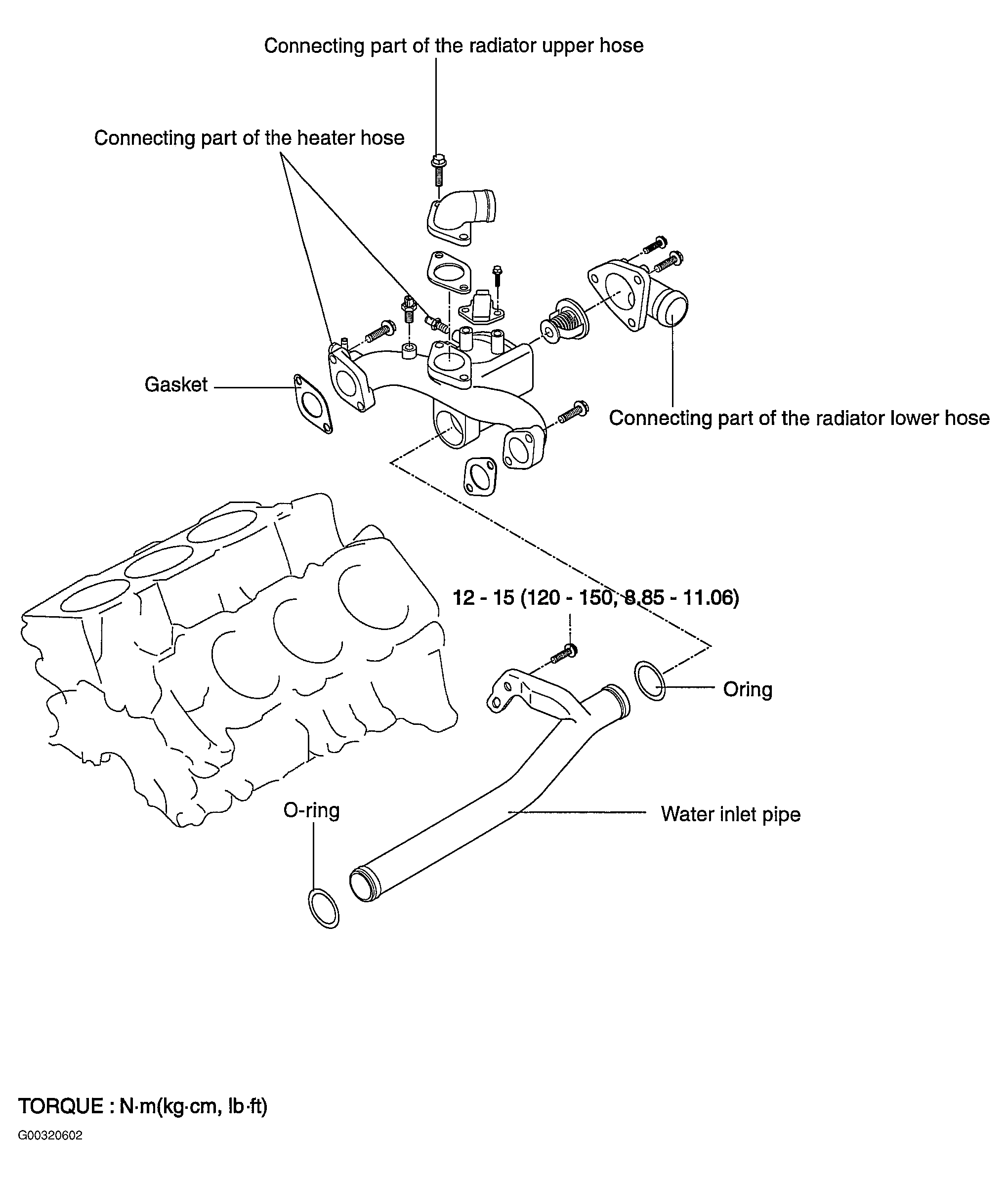

Fig 1: Engine Coolant Hose Components

G00320602

Courtesy of KIA MOTORS AMERICA, INC.
