Specific Gravity Test

  1. Measure the specific gravity of the coolant with a hydrometer.

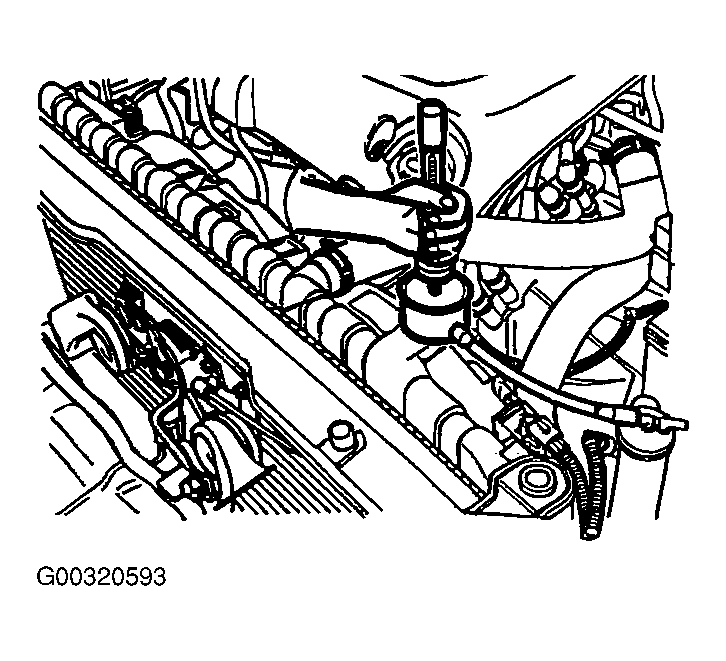

    Fig 1: Measuring Specific Gravity Of Coolant
    G00320593Courtesy of KIA MOTORS AMERICA, INC.
  2. Measure the coolant temperature, and calculate the concentration from the relation between the specific gravity and temperature, using the following table for reference.
