Cylinder Head: Components

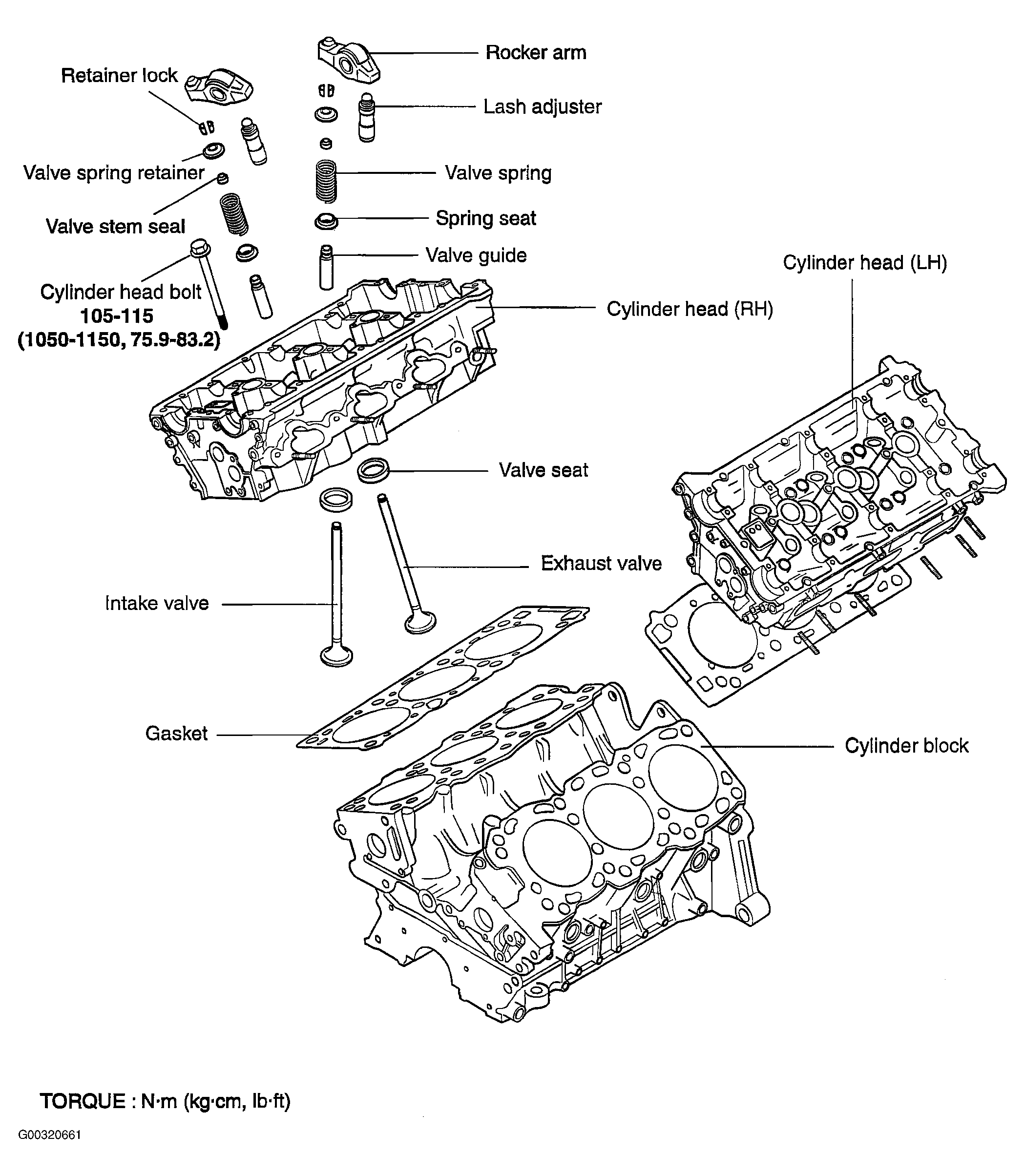

Fig 1: Cylinder Head Components

G00320661

Courtesy of KIA MOTORS AMERICA, INC.
