Crankshaft Disassembly & Inspection: Components

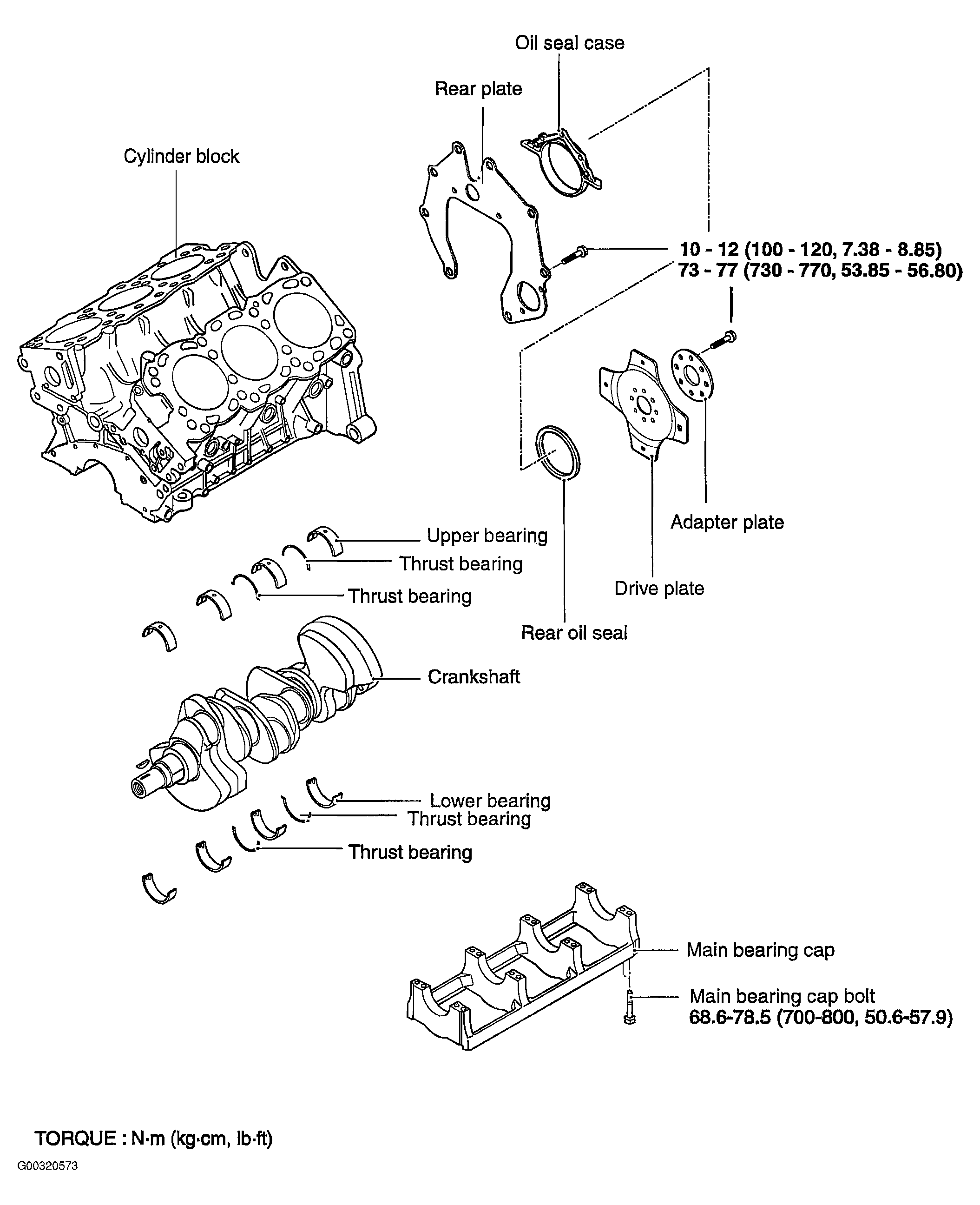

Fig 1: Crank Shaft Components

G00320573

Courtesy of KIA MOTORS AMERICA, INC.
