Intake Manifold: Components

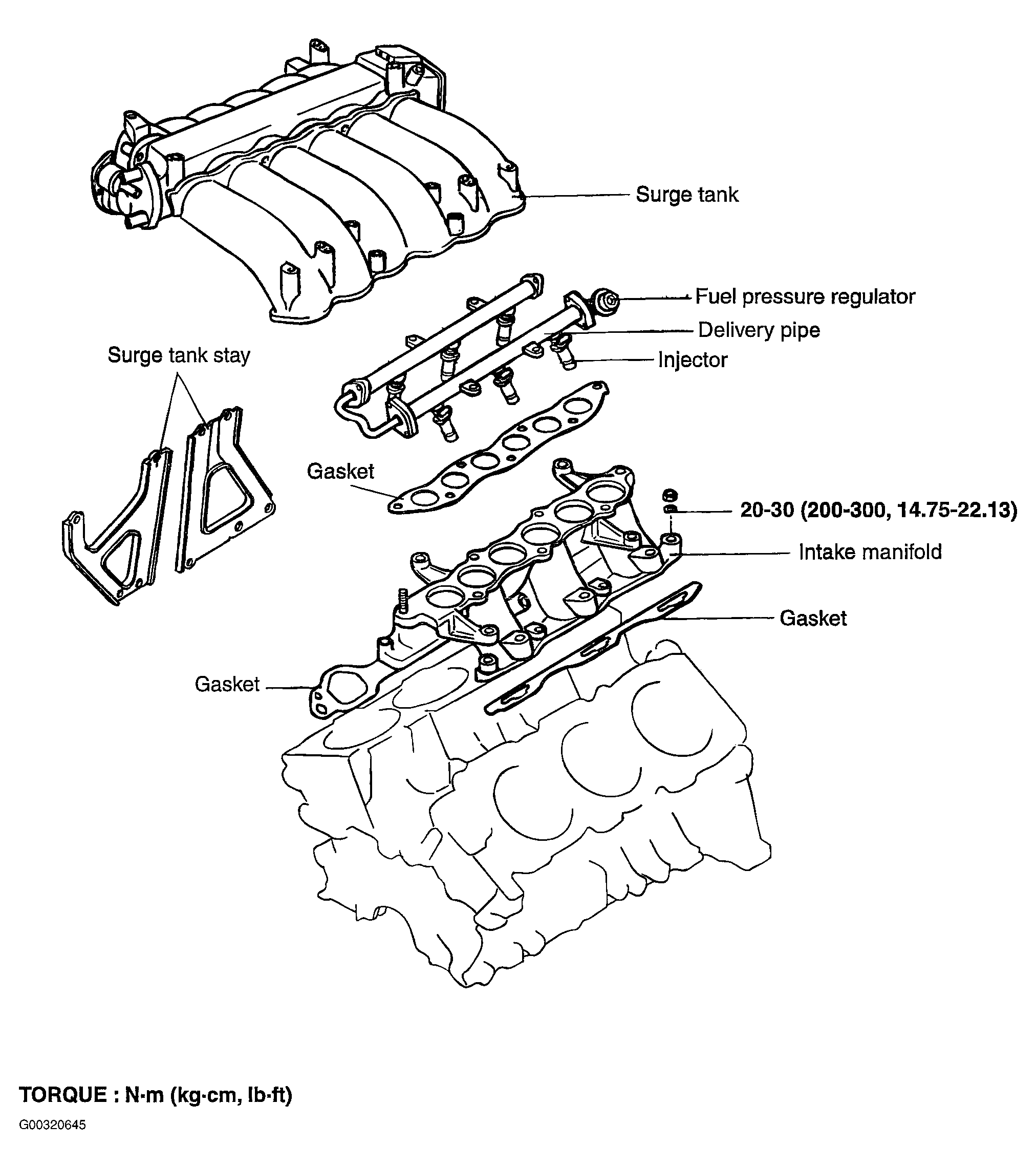

Fig 1: Intake Manifold Components

G00320645

Courtesy of KIA MOTORS AMERICA, INC.
