Service & Adjustments: Specifications

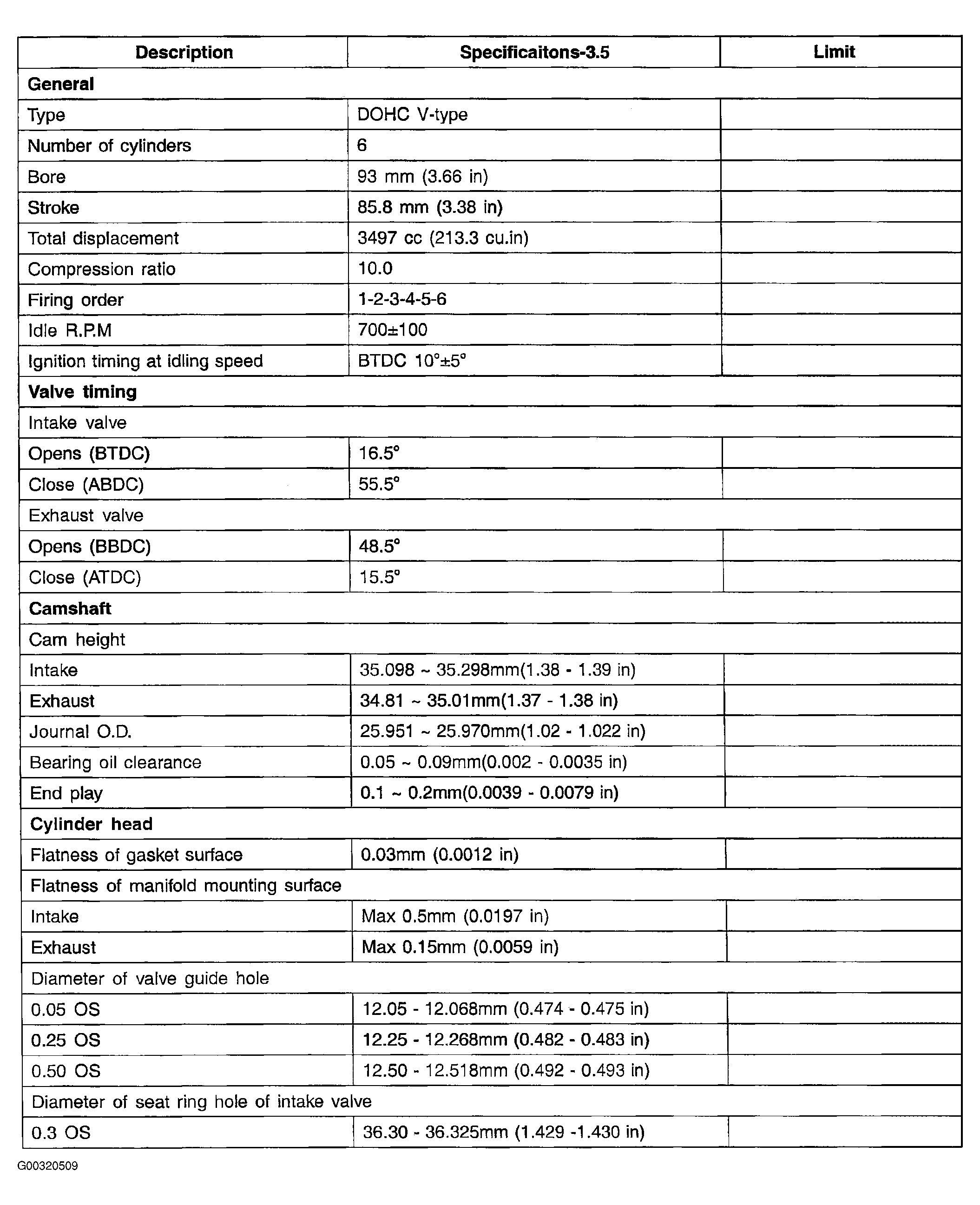

Fig 1: Specifications (1 Of 4)
G00320509Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Specifications (2 Of 4)
G00320510Courtesy of KIA MOTORS AMERICA, INC.
Fig 3: Specifications (3 Of 4)
G00320511Courtesy of KIA MOTORS AMERICA, INC.
Fig 4: Specifications (4 Of 4)
G00320512Courtesy of KIA MOTORS AMERICA, INC.
