Radiator Cap: Components

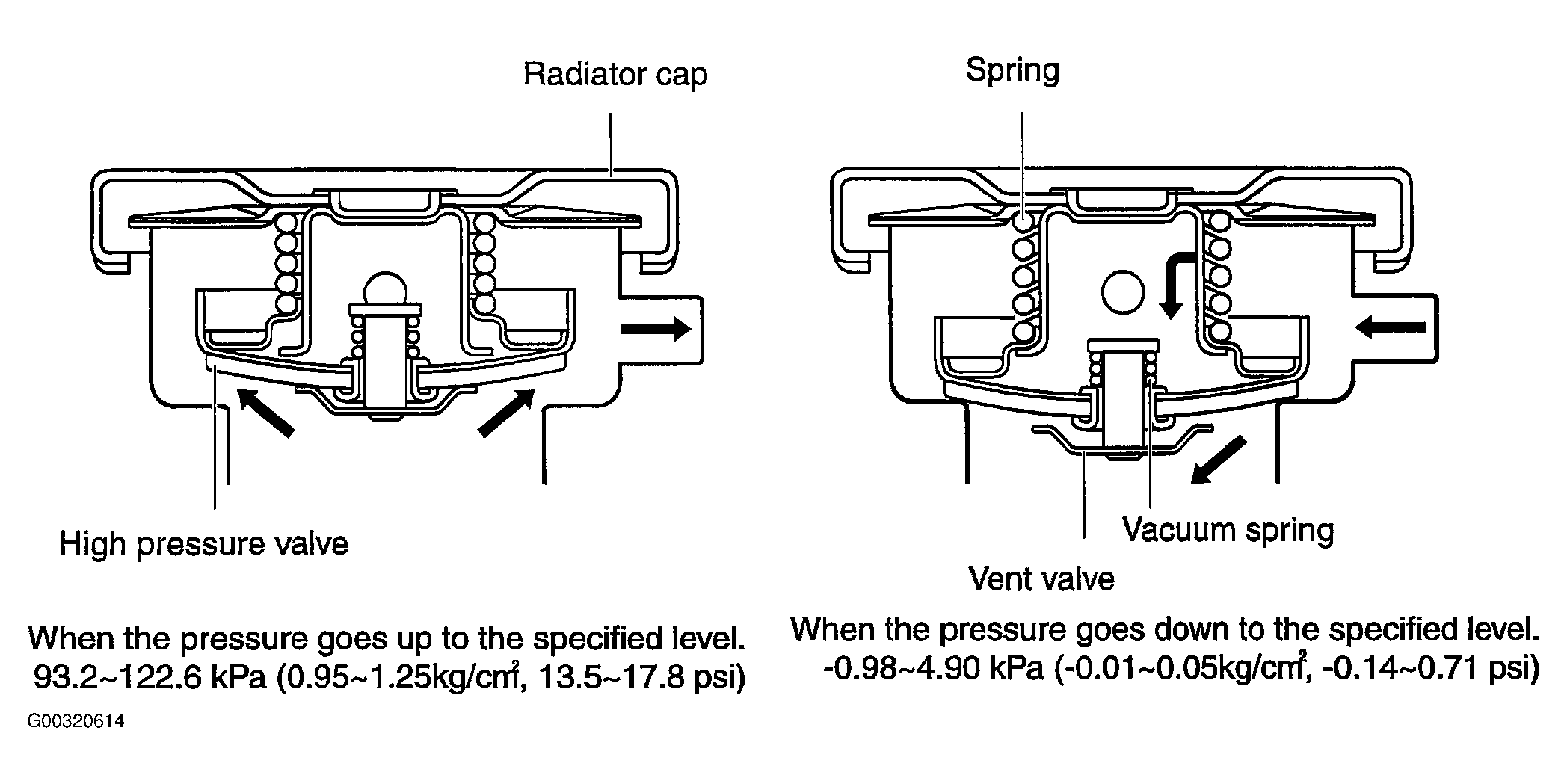

Fig 1: Radiator Cap Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
