Sorento EX, 4WD, Part Time
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Auxiliary Emission Control Systems
>>
General
>>
Schematic Drawing
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Drawing

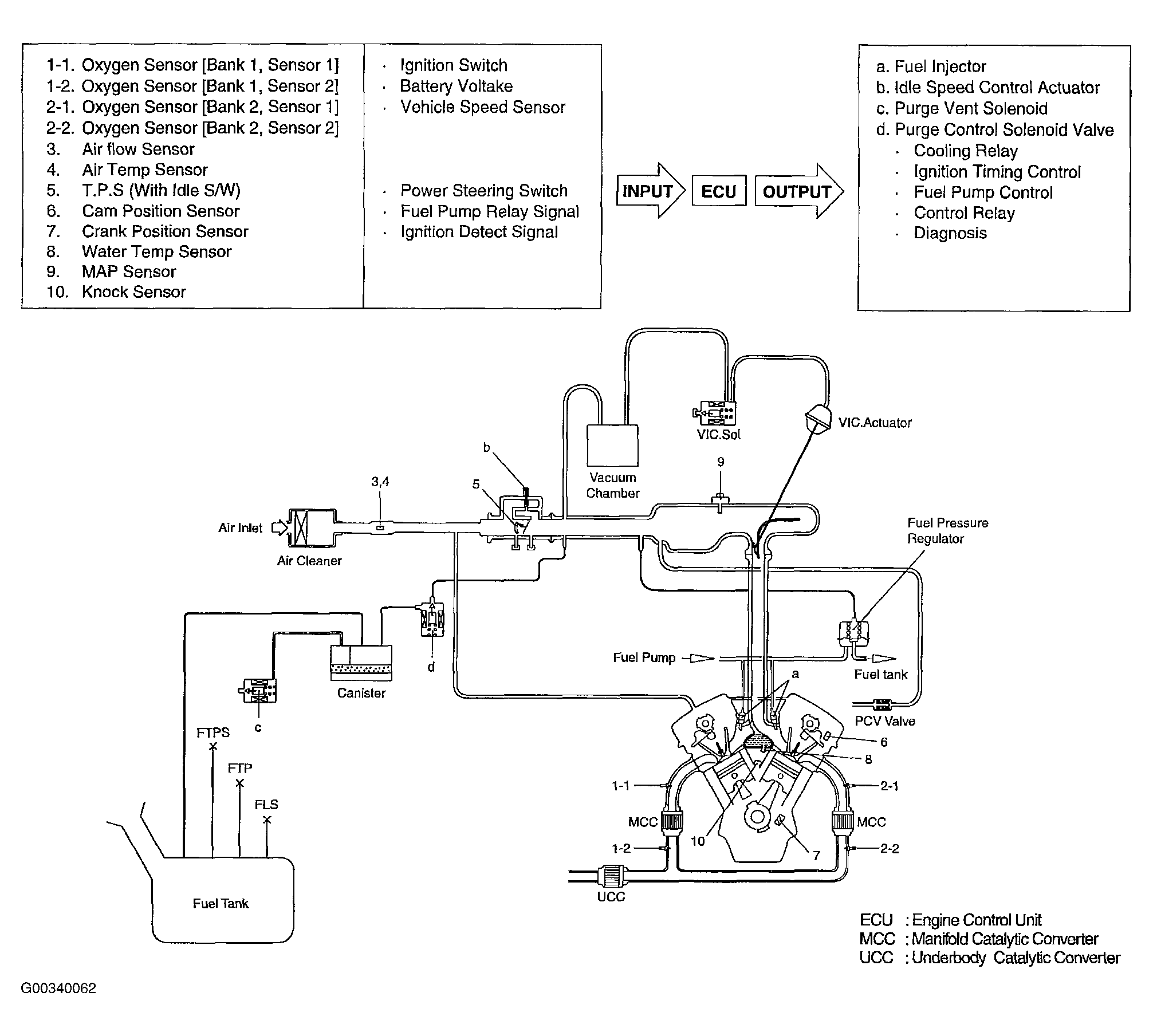

Fig 1: Emissions System Schematic
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
